Unit · AXIAL-PISTON PUMP
A A10V O 45EP2DF/53L-VWC12N00PBASIC*PT*R902450201
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45EP2DF/53L-VWC12N00PBASIC*PT*, material number R902450201. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure and flow control (load-sensing) U = 24 V (EP2DF). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P).
- Number
- R902450201
- Type code
- A A10V O 45EP2DF/53L-VWC12N00PBASIC*PT*
- Group
- A10VO 45
- Edition
- 06/2020

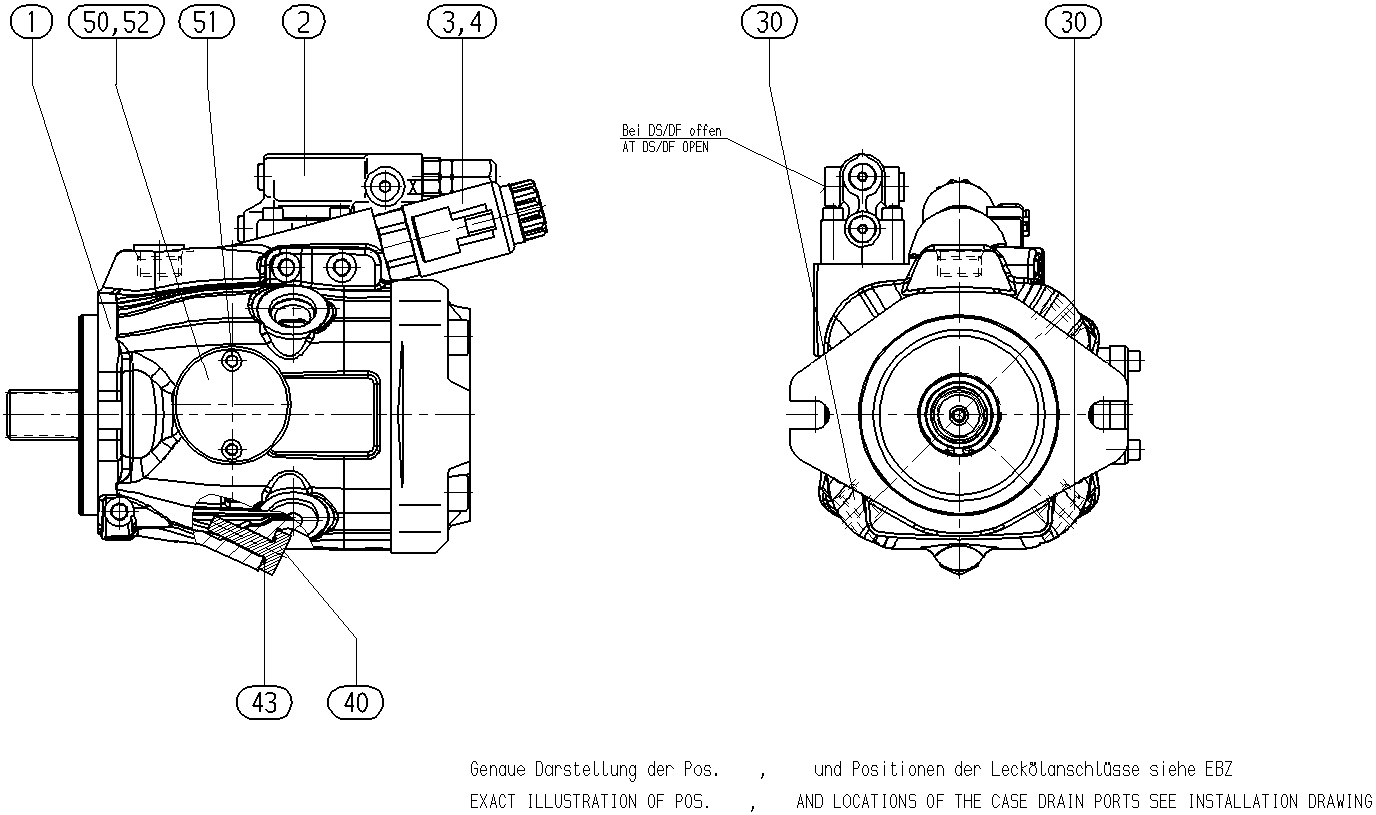

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902450141 | BASE UNIT Assembly parts list →L | 1 | ||
| R902453430 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902439082 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902438539 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 3 | ||
| R902445111 | STOP SCREW | 1 | ||
| R910804886 | O-RING | 1 | ||
| R910967428 | COVER | 1 | ||
| R910109304 | SOCKET HEAD CAP SCREW | 2 | ||
| R910756601 | O-RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with pressure and flow control (load-sensing) U = 24 V | EP2DF |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "U", however for higher torque only conditionally suitable for mounting with through drive. For mounting options | W |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | Without through drive | N00 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
