Unit · AXIAL-PISTON PUMP
AP A10V O140 DFLR/31R-VQC11N00 -S2238R902450515
Axial piston pump Bosch Rexroth series A10VO, type code APA10VO140DFLR/31R-VQC11N00-S2238, material number R902450515. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 2238.
- Number
- R902450515
- Type code
- AP A10V O140 DFLR/31R-VQC11N00 -S2238
- Group
- A10VO 140
- Edition
- 06/2020

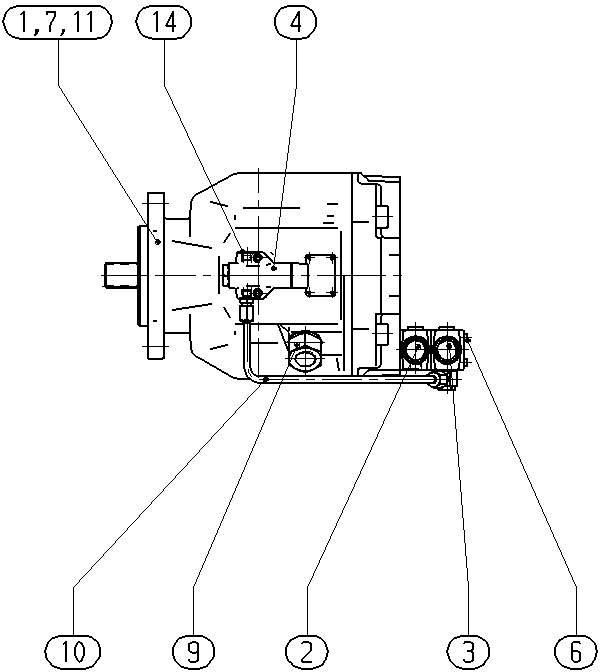

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902450531 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450513 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910943450 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910917804 | SIDE MARKER RING | 1 | ||
| R910913483 | ADAPTER Assembly parts list →L | 1 | ||
| R902450541 | PIPING Assembly parts list →L | 1 | ||
| R910926991 | POWER DIAGRAM | 1 | ||
| R910764647 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
