Unit · AXIAL-PISTON PUMP
A A10V O 45 DRG /31L-PRC12H00 -SO579R902450520
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DRG/31L-PRC12H00-SO579, material number R902450520. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Hydraulic Remote controlled (DRG). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Drive shaft: similar to shaft "S" however for higher torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Special version no. 579.
- Number
- R902450520
- Type code
- A A10V O 45 DRG /31L-PRC12H00 -SO579
- Group
- A10VO 45
- Edition
- 06/2020

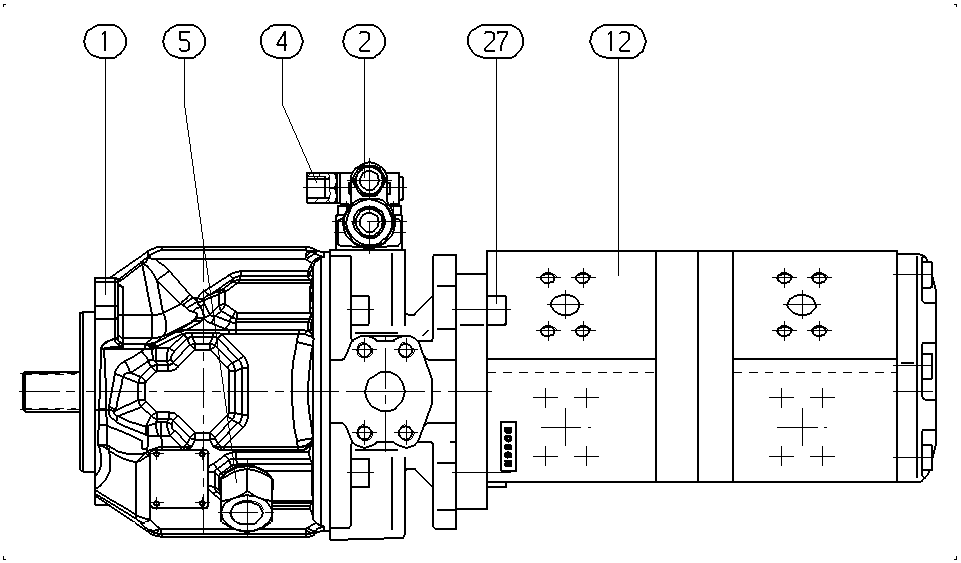

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902444748 | BASE UNIT Assembly parts list →L | 1 | ||
| R902490090 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 | ||
| R910792772 | ADAPTER Assembly parts list →L | 1 | ||
| 0510765390 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910121142 | SOCKET HEAD CAP SCREW | 2 | ||
| 70 | R902421945 | SHIPPING PROTECTION | 1 | |
| 71 | R902421948 | SHIPPING PROTECTION | 1 | |
| 72 | R902602011 | SEAL SCREW | 1 | |
| 73 | R902602008 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 | |
| 75 | R902421946 | SHIPPING PROTECTION | 2 | |
| 76 | R902421946 | SHIPPING PROTECTION | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | With pressure cut-off Hydraulic Remote controlled | DRG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Drive shaft | Similar to shaft "S" however for higher torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
