Unit · CONTROL
VAA6VM280EP2/71-V017-SO192R902451276
Control Bosch Rexroth series A6VM, type code VAA6VM280EP2/71-V017-SO192, material number R902451276. Nominal size: NG 280. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 (017). Standard/special version: special version (-S). Special version no. 192.
- Number
- R902451276
- Type code
- VAA6VM280EP2/71-V017-SO192
- Group
- A6VM 280
- Edition
- 06/2020

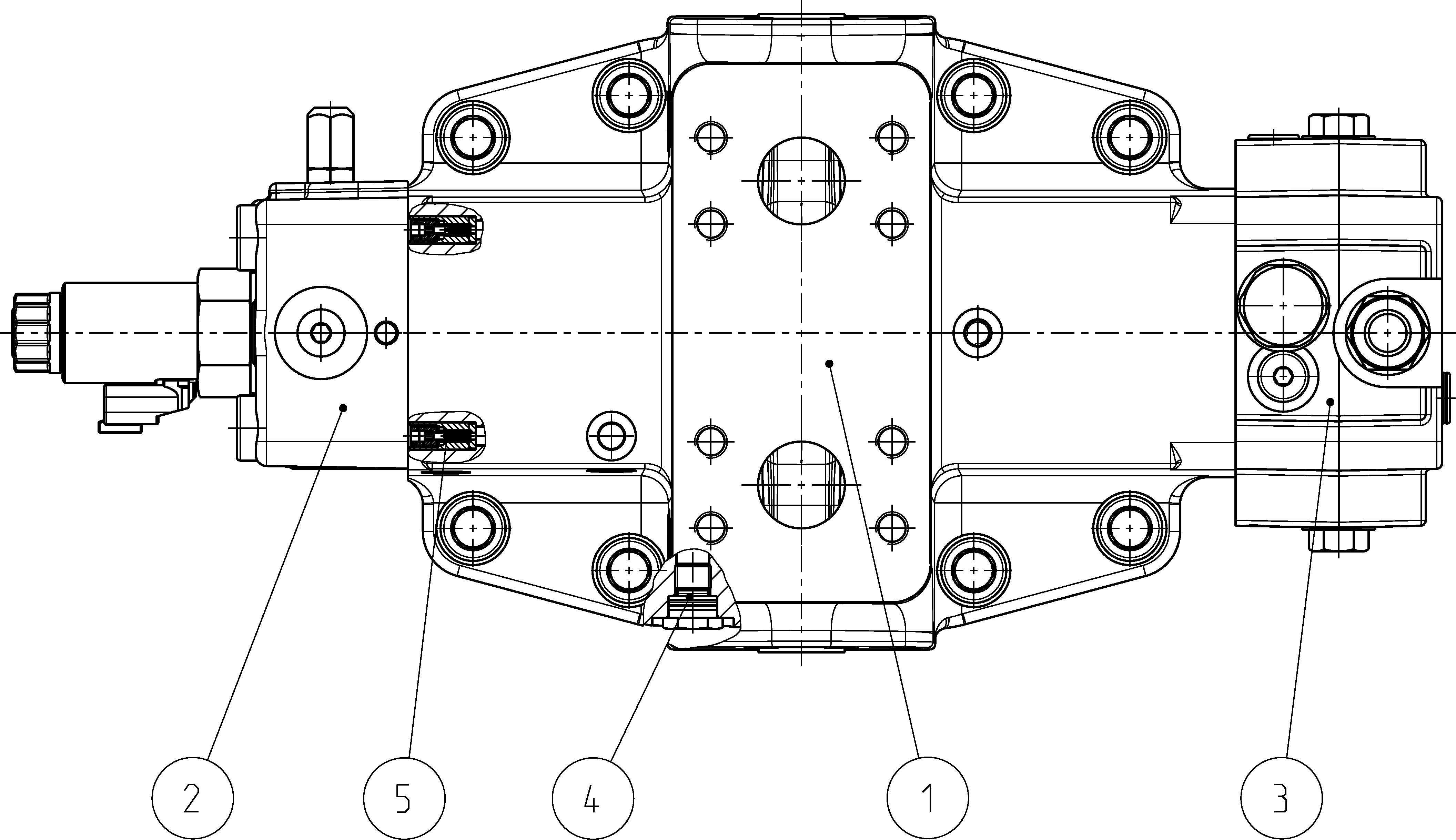

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902451278 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902451280 | CONTROL PART Assembly parts list →L | 1 | ||
| R902538034 | COVER Assembly parts list →L | 1 | ||
| R910927370 | SCREW PLUG | 1 | ||
| R902555521 | FILTER INSERT | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 280 | 280 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 | 017 |
| Standard/special version | Special version | -S |
