Unit · AXIAL-PISTON PUMP

ALA10VO85DFR1/52R-VUC12K04-SO547R902451773

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO85DFR1/52R-VUC12K04-SO547, material number R902451773. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04). Special version no. 547.

Number
R902451773
Type code
ALA10VO85DFR1/52R-VUC12K04-SO547
Group
A10VO 85
Edition
06/2020

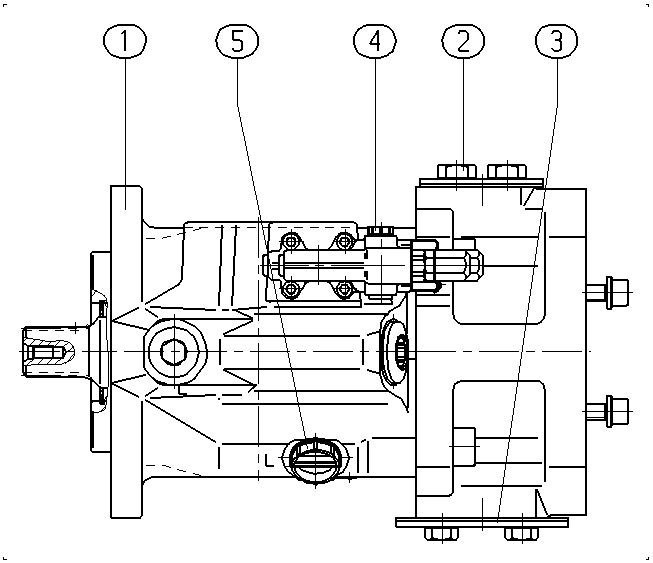

ALA10VO85DFR1/52R-VUC12K04-SO547 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902423028AXIAL-PISTON PUMP Assembly parts list →L1
R902400584FLANGE COVER1
R902400594FLANGE COVER1
R902602014SEAL SCREW1
R902603191SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)8585
Control devicewith flow controller X-T plugged with flushing functionDFR1
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftreduced diameter, limited suitability for through driveU
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Through drive101-2 (B) 1 in 15T 16/32DPK04

Other versions 3
