Unit · CONTROL

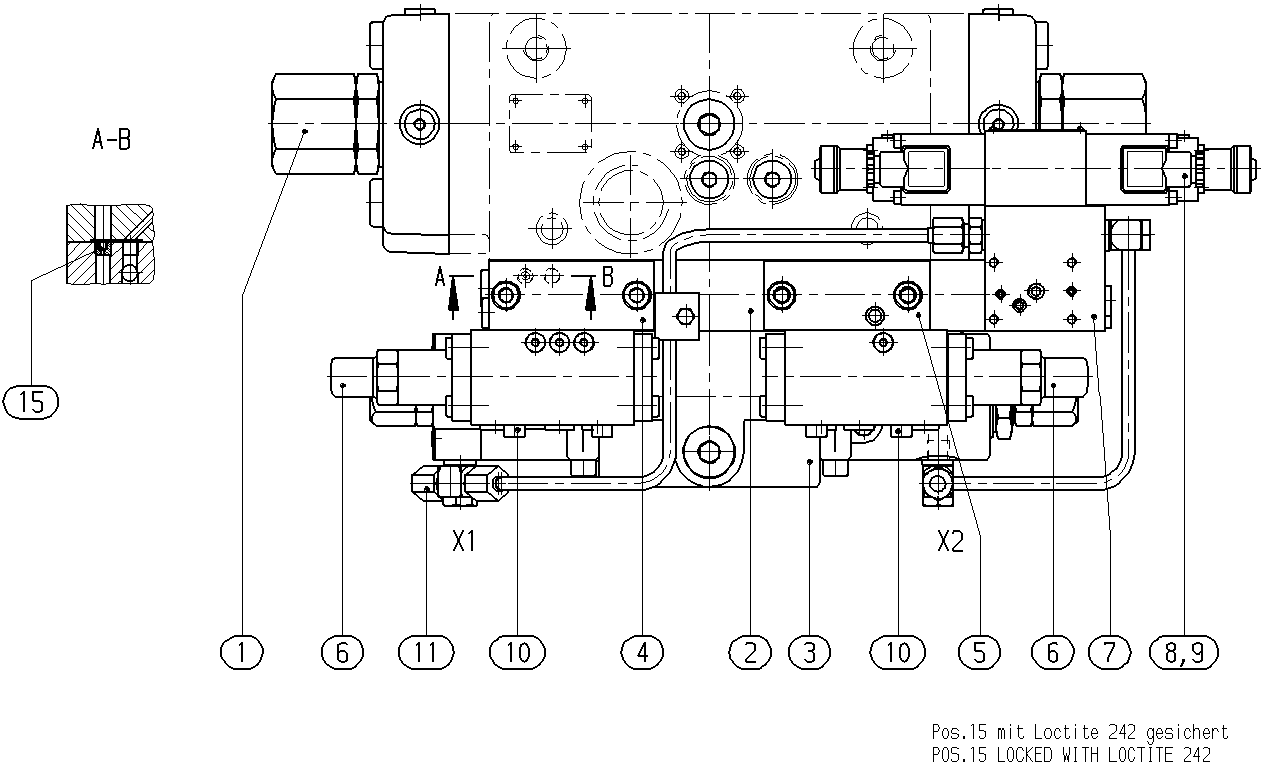

V A4VSG 500 HDDT /30LR902451942
Control Bosch Rexroth series A4VSO, type code VA4VSG500HDDT/30L, material number R902451942. Nominal size: NG 500. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R902451942
- Type code
- V A4VSG 500 HDDT /30L
- Group
- A4VSG 500
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910971763 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910984590 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910916038 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910916451 | PLATE Assembly parts list →L | 1 | ||
| R910916454 | PLATE Assembly parts list →L | 1 | ||
| R910923859 | CONTROL VALVE Assembly parts list →L | 2 | ||
| R910964881 | BLOCK Assembly parts list →L | 1 | ||
| R902405795 | PROPORTIONAL PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R910977595 | SOCKET HEAD CAP SCREW | 4 | ||
| R910914670 | SOCKET HEAD CAP SCREW | 8 | ||
| R910917024 | PIPING PLAN Assembly parts list →L | 1 | ||
| R910747076 | NOZZLE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 500 | 500 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| Electrical control of pilot pressure | T | |
| Series | Series 3, index 0 | 30 |
