Unit · AXIAL-PISTON PUMP
AA10VO180DRS/32R-VSD72U68-SO413*PT*R902453049
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO180DRS/32R-VSD72U68-SO413*PT*, material number R902453049. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: with flow controller X-T plugged with flushing function (DRS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Through drive: only for port plate 22/72 and 32/82, 101-2 (B) 7/8 in 13T 16/32DP (U68).
- Number
- R902453049
- Type code
- AA10VO180DRS/32R-VSD72U68-SO413*PT*
- Group
- A10VO 180
- Edition
- 06/2020

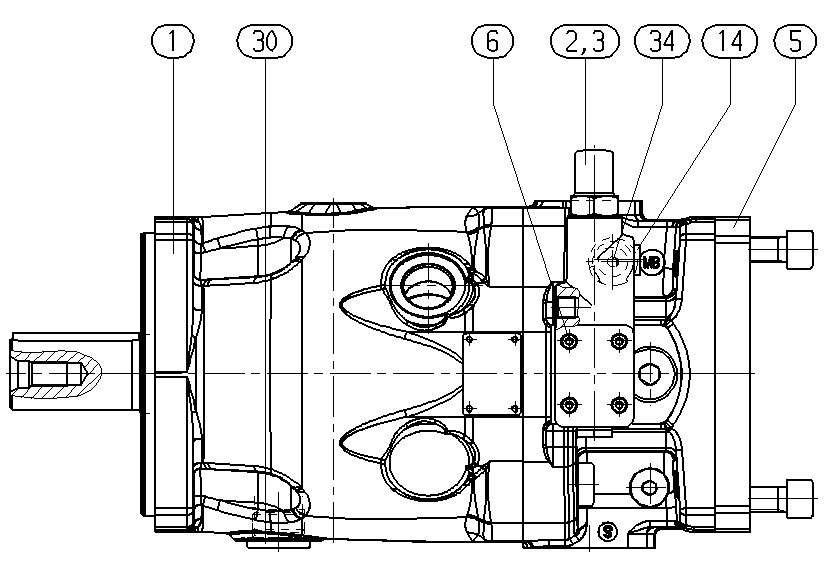

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902451814 | BASE UNIT Assembly parts list →L | 1 | ||
| R902466302 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902447044 | ATTACHMENT KIT | 1 | ||
| 7 | R910967426 | COVER Assembly parts list →L | 1 | |
| 8 | R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | |
| R902601857 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 | ||
| 36 | R902454278 | WASHER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 180 | 180 |
| Control devices | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Through drive | Only for port plate 22/72 and 32/82, 101-2 (B) 7/8 in 13T 16/32DP | U68 |
