Unit · AXIAL-PISTON PUMP
A A10VSO 71 DR /32L-VKD82U99 ER902453287
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71DR/32L-VKD82U99E, material number R902453287. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V).
- Number
- R902453287
- Type code
- A A10VSO 71 DR /32L-VKD82U99 E
- Group
- A10VSO 71
- Edition
- 06/2020

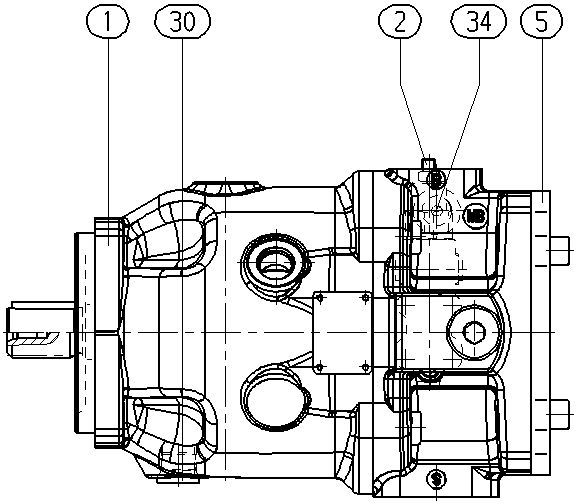

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902449409 | BASE UNIT Assembly parts list →L | 1 | ||
| R902453112 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902438778 | COVER Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
