Unit · AXIAL-PISTON PUMP

AA10VO60DFR1/52L-VSD12N00-SO547R902453379

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DFR1/52L-VSD12N00-SO547, material number R902453379. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Special version no. 547.

Number: R902453379
Type code: AA10VO60DFR1/52L-VSD12N00-SO547
Group: A10VO 60
Edition: 06/2020

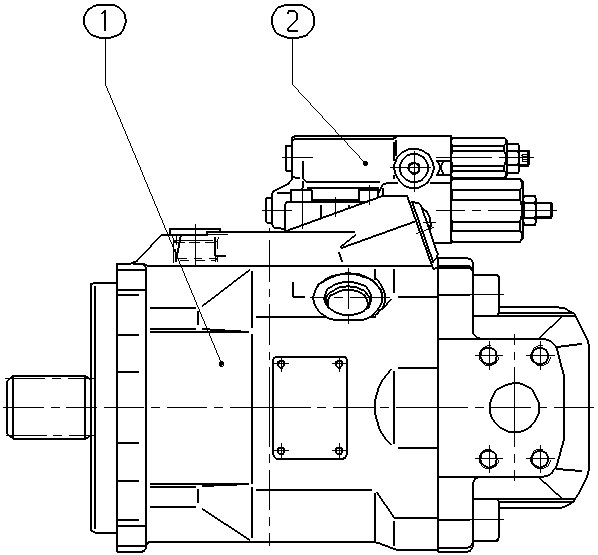

AA10VO60DFR1/52L-VSD12N00-SO547 — Drawing

Pos.	Number	Name	Qty	Add to inquiry
	R902404092	BASE UNIT Assembly parts list →L	1
	R902450441	CONTROL VALVE Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	60	60
Control device	with flow controller X-T plugged with flushing function	DFR1
Series	Series 5, index 2	52
Direction of rotation	Viewed on drive shaft counter-clockwise	L
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 4-hole	D
Working port	SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite	12
Through drive	Without through drive	N00

Parameters from the type code
