Unit · POMPA OSIOWO-TŁOKOWA
A A10VSO100ER 2/31R-VPA12N00H -SO381R902454250
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100ER2/31R-VPA12N00H-SO381, material number R902454250. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Connector for solenoids: HIRSCHMANN connector – without suppressor diode (H). Special version no. 381.
- Number
- R902454250
- Type code
- A A10VSO100ER 2/31R-VPA12N00H -SO381
- Group
- A10VSO 100
- Edition
- 06/2020

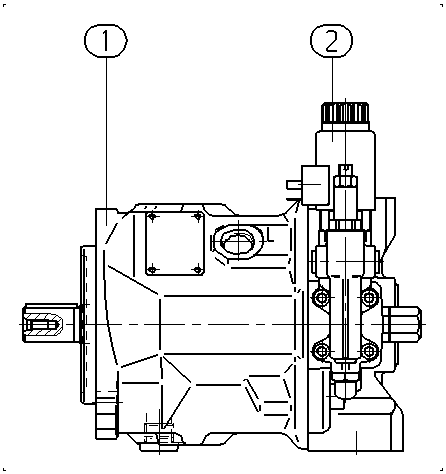

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910916800 | ZESPÓŁ PODSTAWY Assembly parts list →L | 1 | ||
| R902533514 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
| Connector for solenoids | HIRSCHMANN connector – without suppressor diode | H |
