Unit · AXIAL-PISTON PUMP
AL A10VNO 85 DRS /53L-VRD12K68 -S2213R902454647
Axial piston pump Bosch Rexroth series A10VNO, type code ALA10VNO85DRS/53L-VRD12K68-S2213, material number R902454647. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DRS). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "S" however for torque (R). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: according to ISO 6162 laterally opposite for through drive (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 2213.
- Number
- R902454647
- Type code
- AL A10VNO 85 DRS /53L-VRD12K68 -S2213
- Group
- A10VNO 85
- Edition
- 06/2020

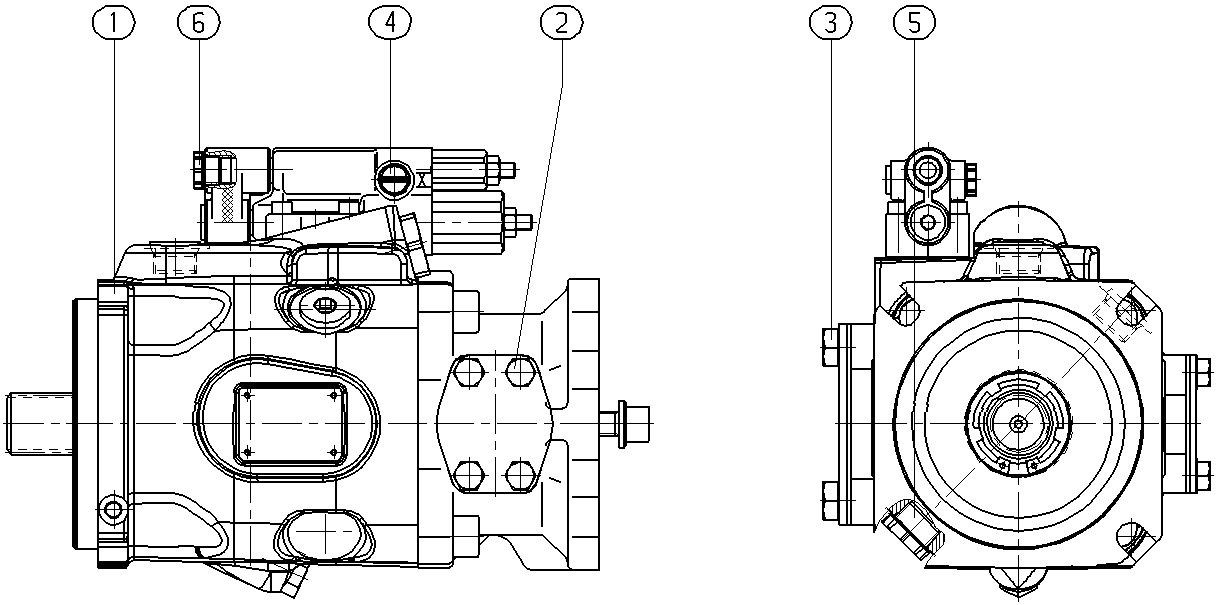

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902453761 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400590 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 | ||
| R902602015 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 85 | 85 |
| Control device | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "S" however for torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 4-hole | D |
| Working port | according to ISO 6162 laterally opposite for through drive | 12 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
