Unit · AXIAL-PISTON PUMP

AHA10VO71DFR1/31L-VSC92K68-S2247R902454728

Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO71DFR1/31L-VSC92K68-S2247, material number R902454728. Nominal size: NG 71. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom (92). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 2247.

Number
R902454728
Type code
AHA10VO71DFR1/31L-VSC92K68-S2247
Group
A10VO 71
Edition
06/2020

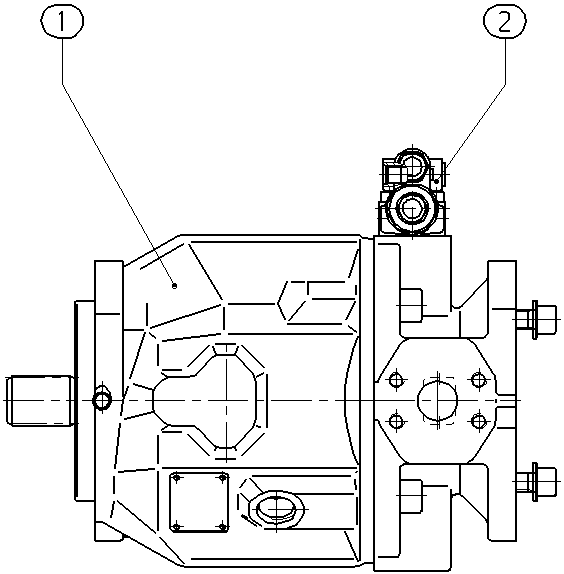

AHA10VO71DFR1/31L-VSC92K68-S2247 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902454696BASE UNIT Assembly parts list →L1
R902450439CONTROL VALVE Assembly parts list →L1

Parameters from the type code

ItemMeaningCode
VersionHigh-speed version (external dimensions are the same as the standard version)H
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7171
Control deviceWith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft Counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom92
Through drive101-2 (B) 7/8 in 13T 16/32DPK68

Other versions 1
