Unit · AXIAL-PISTON PUMP
A A10V O140 DG /31R-VSD61N00R902455063
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DG/31R-VSD61N00, material number R902455063. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: two-point control, direct operated (DG). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive (61). Through drive: without through drive (N00).
- Number
- R902455063
- Type code
- A A10V O140 DG /31R-VSD61N00
- Group
- A10VO 140
- Edition
- 06/2020

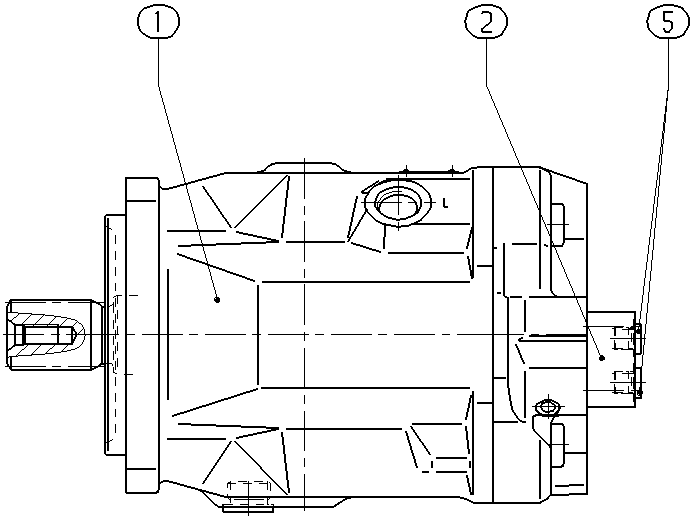

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902455080 | BASE UNIT Assembly parts list →L | 1 | ||
| R902572797 | CONTROL PLATE Assembly parts list →L | 1 | ||
| R909153930 | SCREW PLUG | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | Two-point control, direct operated | DG |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Working port | SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive | 61 |
| Through drive | Without through drive | N00 |
