Unit · AXIAL-PISTON PUMP
AH A10V O 45ED 72/52R-VSC11N00PR902455487
Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO45ED72/52R-VSC11N00P, material number R902455487. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P).
- Number
- R902455487
- Type code
- AH A10V O 45ED 72/52R-VSC11N00P
- Group
- A10VO 45
- Edition
- 06/2020

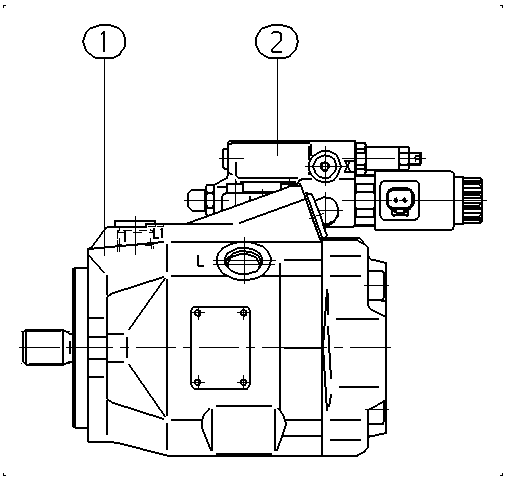

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910984060 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533400 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | electric U = 24 V | ED72 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive | 11 |
| Through drive | Without through drive | N00 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
Other versions 15
- R902448646 A A10V O 45ED 72/52R-VSC11N00P
- R902505779 A A10V O 45ED 72/52R-VSC11N00P
- R902472282 A A10V O 45ED 72/52R-VSC11N00P -S1050
- R902468101 A A10V O 45ED 72/52R-VSC11N00P -S1457
- R902469406 A A10V O 45ED 72/52R-VSC11N00P -S2589
- R902482581 A A10V O 45ED 72/52R-VSC11N00P -S2994
- R902493789 A A10V O 45ED 72/52R-VSC11N00P -S3456
- R902519413 AL A10V O 45ED 72/52R-VSC11N00P
- R902520676 AL A10V O 45ED 72/52R-VSC11N00P
- R902472283 AL A10V O 45ED 72/52R-VSC11N00P -S1050
- R902519233 AL A10V O 45ED 72/52R-VSC11N00P -S1457
- R902493788 AL A10V O 45ED 72/52R-VSC11N00P -S3456
- R902565871 AL A10V O 45ED 72/52R-VSC11N00P -S3456
- R902536877 AL A10V O 45ED 72/52R-VSC11N00P -S4335
- R902537874 AL A10V O 45ED 72/52R-VSC11N00P -S5362
