Unit · AXIAL-PISTON PUMP

A A10V O140 DFLR/31R-VSD62K17R902455593

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DFLR/31R-VSD62K17, material number R902455593. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62).

Number
R902455593
Type code
A A10V O140 DFLR/31R-VSD62K17
Group
A10VO 140
Edition
06/2020

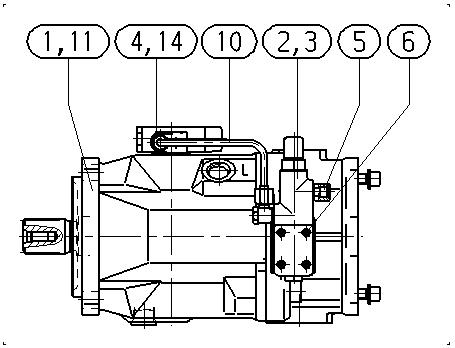

A A10V O140 DFLR/31R-VSD62K17 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902452275BASE UNIT Assembly parts list →L1
R910924992CONTROL VALVE Assembly parts list →L1
R910924990CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R902451979ADAPTER Assembly parts list →L1
R910799998SOCKET HEAD CAP SCREW4
R910964730PIPING Assembly parts list →L1
R902427648POWER DIAGRAM1
R910764647SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)140140
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2/4-holeD
Working portSAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive62
