Unit · AXIAL-PISTON PUMP
PA4VSG250EM1009/30R-PPB10H029FR902455697
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG250EM1009/30R-PPB10H029F, material number R902455697. Nominal size: NG 1009. Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 8), an attachment pump for boost circuit (H02). Valves: SDVB valve block mounted (9). Filtration: filter mounted in the boost circuit (F).
- Number
- R902455697
- Type code
- PA4VSG250EM1009/30R-PPB10H029F
- Group
- A4VSG 250
- Edition
- 01/2020

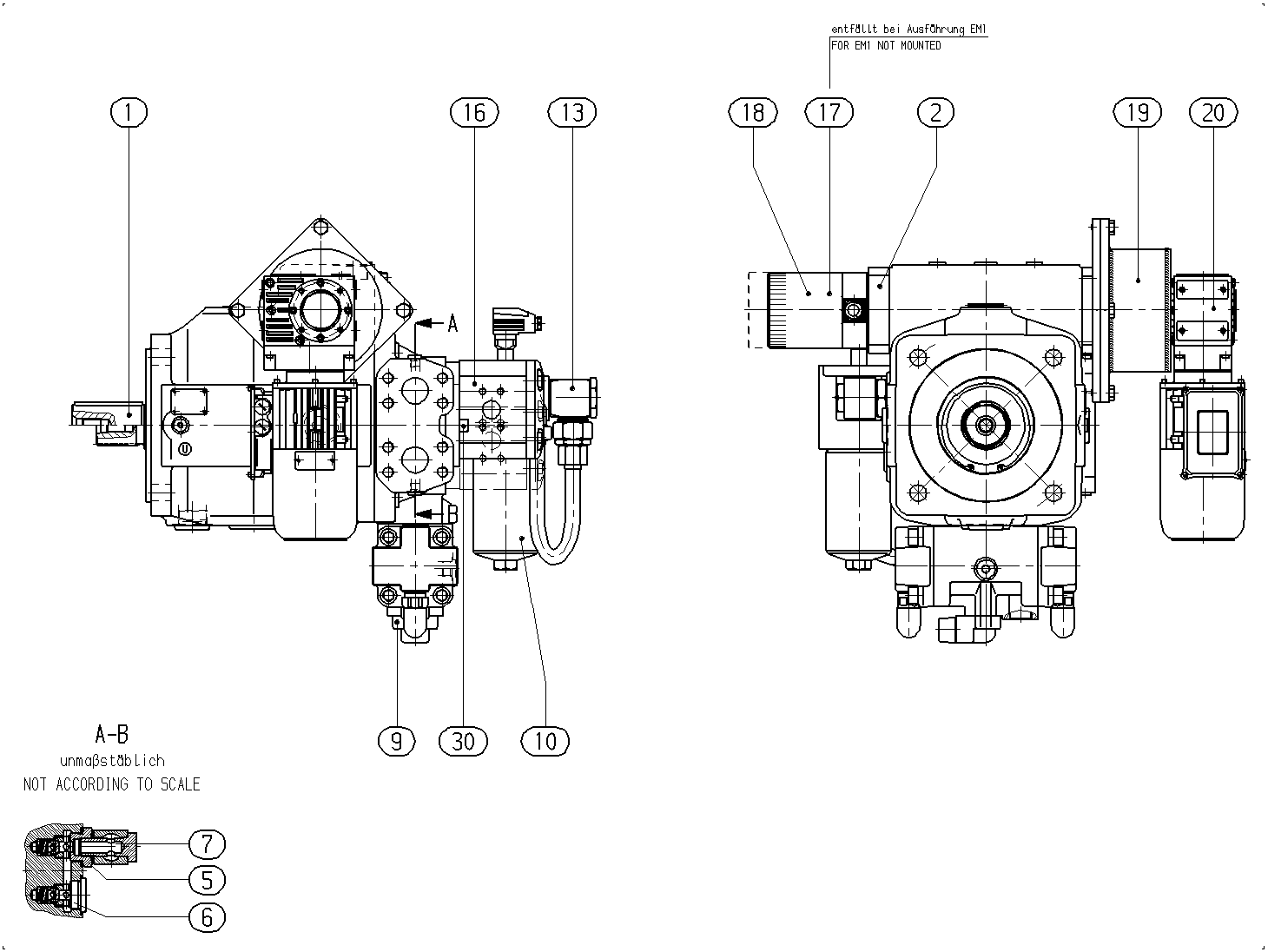

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902412923 | BASE UNIT Assembly parts list →L | 1 | ||
| R910988273 | CONTROL Assembly parts list →L | 1 | ||
| R910948834 | VALVE MOUNTING KIT | 1 | ||
| R910944807 | VALVE MOUNTING KIT | 1 | ||
| R910949143 | SWIVEL TUBE FITTING | 1 | ||
| R910902407 | FLUSHING BLOCK Assembly parts list →L | 1 | ||
| R910924519 | FILTER Assembly parts list →L | 1 | ||
| R902444203 | PIPING PLAN Assembly parts list →L | 1 | ||
| 0510725107 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910917548 | LIMIT SWITCH | 1 | ||
| R910990456 | COUPLING | 1 | ||
| R910990042 | GEAR MOTOR | 1 | ||
| R910109789 | SOCKET HEAD CAP SCREW | 2 | ||
| 61 | R902805709 | SHIPPING PROTECTION | 2 | |
| R902602206 | SEAL SCREW | 1 | ||
| 65 | R902602013 | SEAL SCREW | 1 | |
| 71 | R902421945 | SHIPPING PROTECTION | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Size (NG) | 1009 | 1009 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 8), an attachment pump for boost circuit | H02 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Filter mounted in the boost circuit | F |
