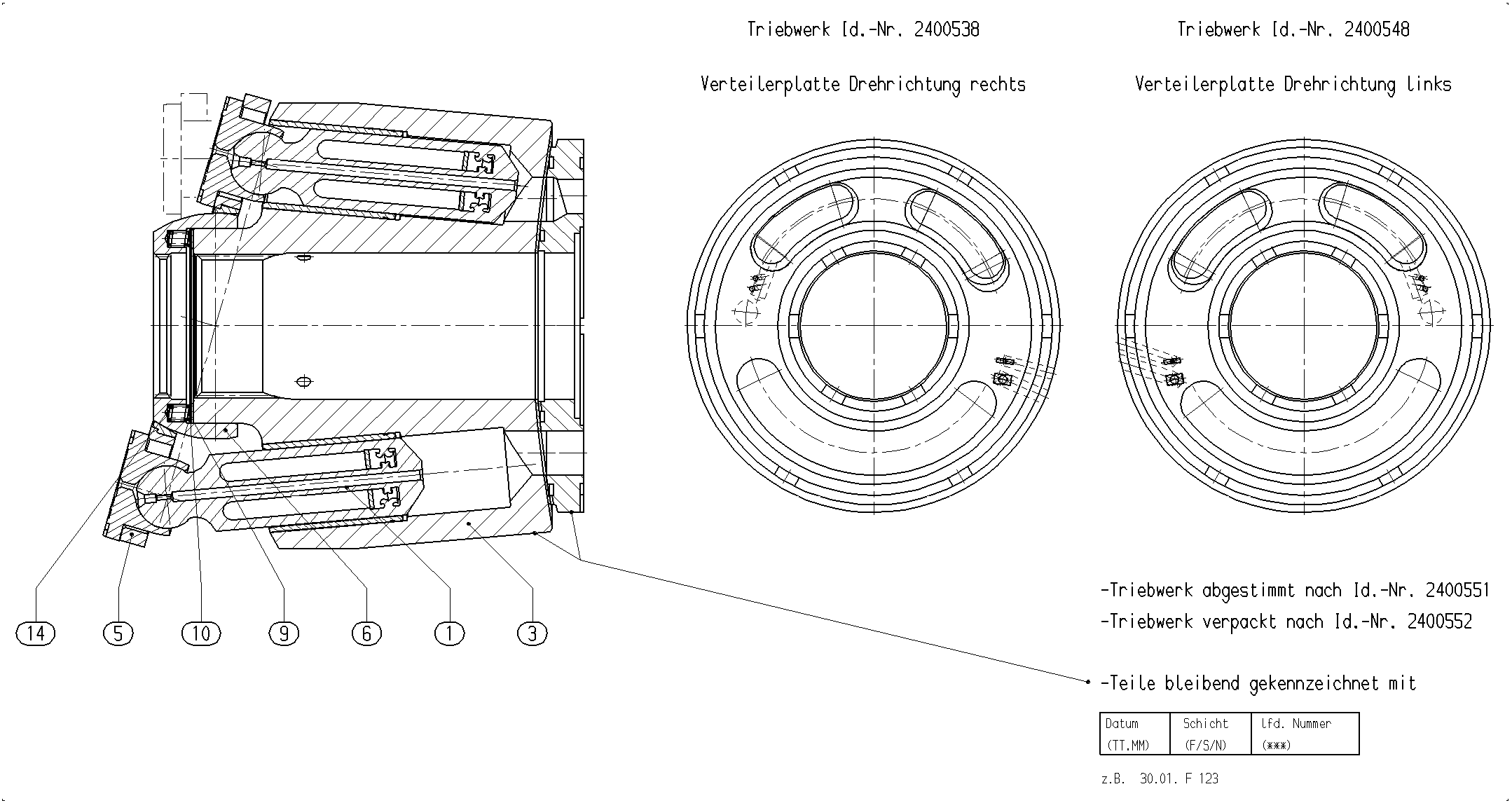

Unit · ROTARY GROUP
TW A11V O 190 52R HYDR.TEIL *G*R902455846
Rotary group Bosch Rexroth series A11VO, type code TWA11VO19052RHYDR.TEIL*G*, material number R902455846. Nominal size: NG 1905. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Direction of rotation: viewed on drive shaft clockwise (R). Mounting flange: SAE J744 ‒ 4-hole (D). Swivel angle indicator: with electric swivel angle sensor (R).
- Number
- R902455846
- Type code
- TW A11V O 190 52R HYDR.TEIL *G*
- Group
- A11VO 19052
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902438137 | PISTON PAD | 9 | ||
| R902455845 | CYLINDER | 1 | ||
| R902439616 | RETAINING PLATE | 1 | ||
| R902439437 | RETAINING BALL | 1 | ||
| R902400545 | SHIM RING | 2 | ||
| R902400546 | SHIM RING | 2 | ||
| R902400547 | COMPRESSION SPRING | 20 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 1905 | 1905 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Swivel angle indicator | With electric swivel angle sensor | R |
