Unit · AXIAL-PISTON PUMP
A AA10VSO100DFLR1/31R-VKC62N00 -SO385R902456166
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO100DFLR1/31R-VKC62N00-SO385, material number R902456166. Nominal size: NG 100. Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00). Special version no. 385.
- Number
- R902456166
- Type code
- A AA10VSO100DFLR1/31R-VKC62N00 -SO385
- Group
- A10VSO 100
- Edition
- 06/2020

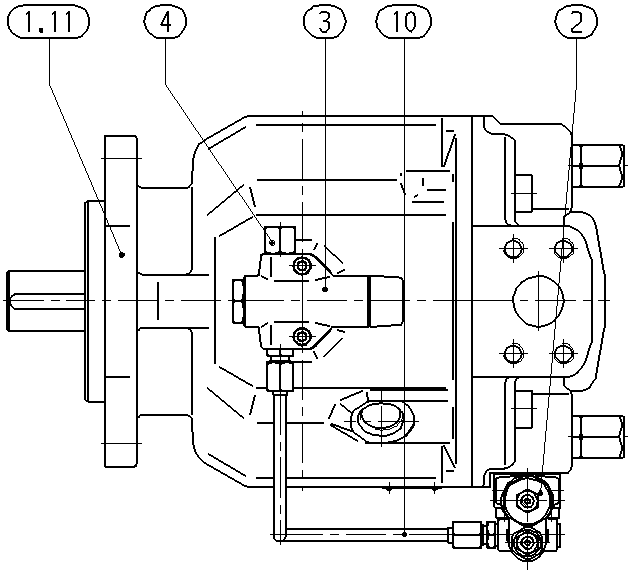

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902456169 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451761 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910932938 | ADAPTER Assembly parts list →L | 1 | ||
| R910960141 | PIPING Assembly parts list →L | 1 | ||
| R910910063 | POWER DIAGRAM | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | Pressure, flow and power controller | DFLR |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
