Unit · CONTROL VALVE

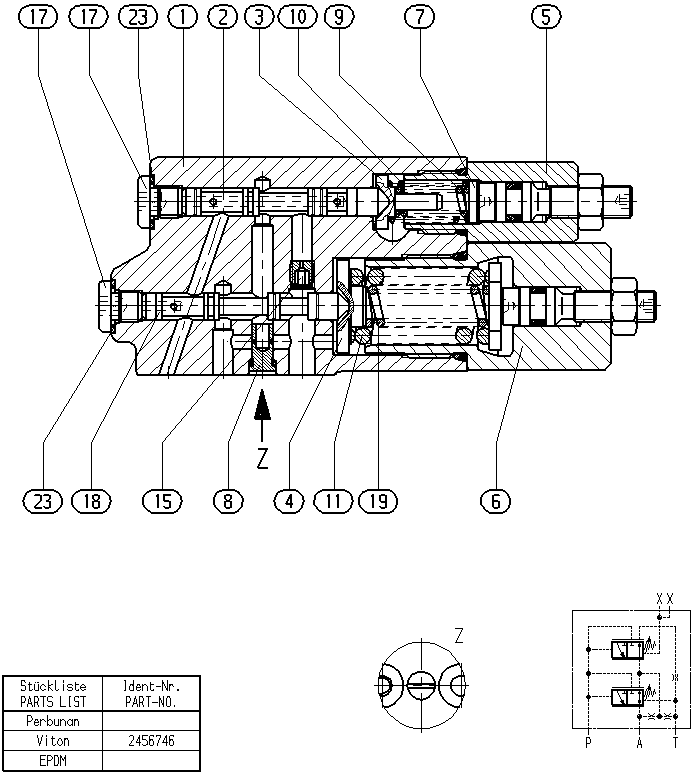

CONTROL VALVE ZVKDRSVA10-232+-1/21&R902456746
Control valve Bosch Rexroth, type code CONTROLVALVEZVKDRSVA10-232+-1/21&, material number R902456746.
- Number
- R902456746
- Type code
- CONTROL VALVE ZVKDRSVA10-232+-1/21&
- Group
- CONTROL VALVE
- Edition
- 05/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902434572 | VALVE HOUSING | 1 | ||
| R902420112 | VALVE SPOOL | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902449500 | SPRING DISK | 1 | ||
| R902451578 | SERVO UNIT Assembly parts list →L | 1 | ||
| R902451580 | SERVO UNIT Assembly parts list →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902451582 | ORIFICE Assembly parts list →L | 1 | ||
| R910924695 | COMPRESSION SPRING | 1 | ||
| R910924709 | COMPRESSION SPRING | 1 | ||
| R910707031 | COMPRESSION SPRING | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910933812 | SCREW PLUG | 2 | ||
| R910900311 | VALVE SPOOL | 1 | ||
| R910911509 | COMPRESSION SPRING | 1 | ||
| R910642827 | BONDED SEAL RING | 2 |
