Unit · AXIAL-PISTON PUMP
AHA10VO74DFLR/31R-VUC12N00P-S2322R902459314
Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO74DFLR/31R-VUC12N00P-S2322, material number R902459314. Nominal size: NG 74. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter; limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Special version no. 2322.
- Number
- R902459314
- Type code
- AHA10VO74DFLR/31R-VUC12N00P-S2322
- Group
- A10VO 74
- Edition
- 06/2020

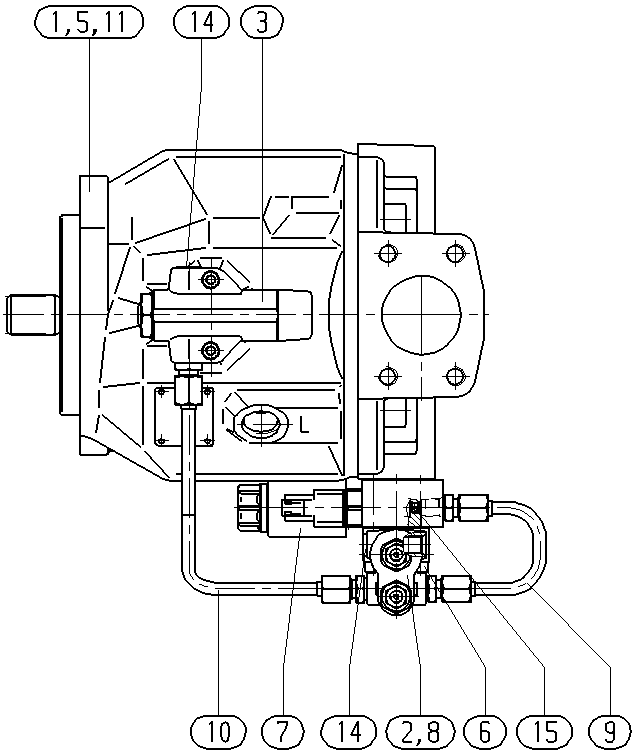

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902459233 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533493 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910918062 | SIDE MARKER RING | 1 | ||
| R910387053 | SOCKET HEAD CAP SCREW | 4 | ||
| R902436776 | VALVE PLATE Assembly parts list →L | 1 | ||
| R902434482 | SEAL | 1 | ||
| R902438664 | PIPING Assembly parts list →L | 1 | ||
| R902438665 | PIPING Assembly parts list →L | 1 | ||
| R902450753 | POWER DIAGRAM | 1 | ||
| R910764647 | SCREW PLUG | 2 | ||
| R909156492 | NOZZLE | 1 | ||
| 51 | R909154493 | SAFETY CAP | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are the same as the standard version) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 74 | 74 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Reduced diameter; limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | Without through drive | N00 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
