Unit · AXIAL-PISTON PUMP

A A10V O 71 DFLR/31R-VSC12N00 ESO 52R902459408

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFLR/31R-VSC12N00ESO52, material number R902459408. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 52.

Number
R902459408
Type code
A A10V O 71 DFLR/31R-VSC12N00 ESO 52
Group
A10VO 71
Edition
06/2020

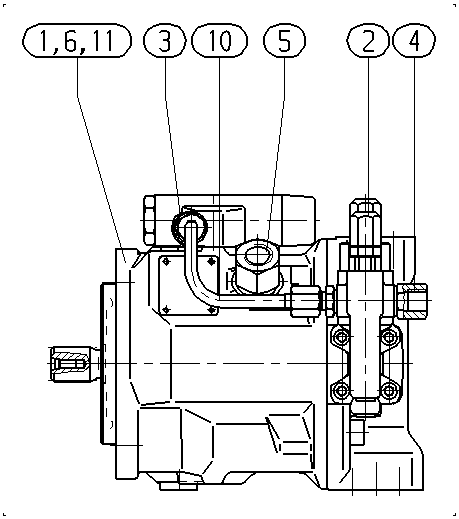

A A10V O 71 DFLR/31R-VSC12N00 ESO 52 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910972147BASE UNIT Assembly parts list →L1
R902450439CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R910932943ADAPTER Assembly parts list →L1
R910934572ADAPTER Assembly parts list →L1
R910917866SIDE MARKER RING1
R910963791PIPING Assembly parts list →L1
R902410938POWER DIAGRAM1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7171
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through driveWithout through driveN00

Other versions 42
