Unit · AXIAL-PISTON PUMP
A AA10VSO 45 DFLR/31R-PKC62H00R902459604
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO45DFLR/31R-PKC62H00, material number R902459604. Nominal size: NG 45. Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Connector for solenoids: HIRSCHMANN connector – without suppressor diode (H).
- Number
- R902459604
- Type code
- A AA10VSO 45 DFLR/31R-PKC62H00
- Group
- A10VSO 45
- Edition
- 06/2020

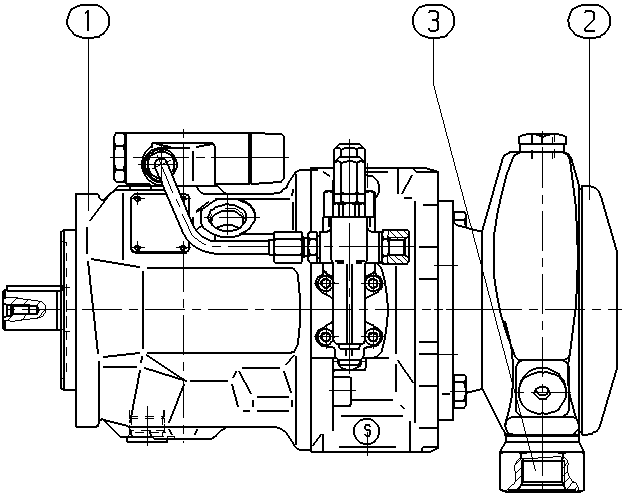

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400479 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R901093871 | RADIAL PISTON PUMP Assembly parts list →L | 1 | ||
| R978915386 | ADAPTER Assembly parts list →L | 1 | ||
| 74 | R910987378 | SEALING COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Connector for solenoids | HIRSCHMANN connector – without suppressor diode | H |
