Unit · AXIAL-PISTON PUMP
A A20V O 63 DRS /11R-VSD24K01 -S2335R902459705
Axial piston pump Bosch Rexroth series A20VO, type code AA20VO63DRS/11R-VSD24K01-S2335, material number R902459705. Nominal size: NG 63. Axial piston unit: swashplate design, variable (back to back version) (A20V). Operating mode: double pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 4-hole (D). Working port: SAE flanges, two port B and one port S laterally opposite, metric fastening thread (24). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 2335.
- Number
- R902459705
- Type code
- A A20V O 63 DRS /11R-VSD24K01 -S2335
- Group
- A20VO 63
- Edition
- 06/2020

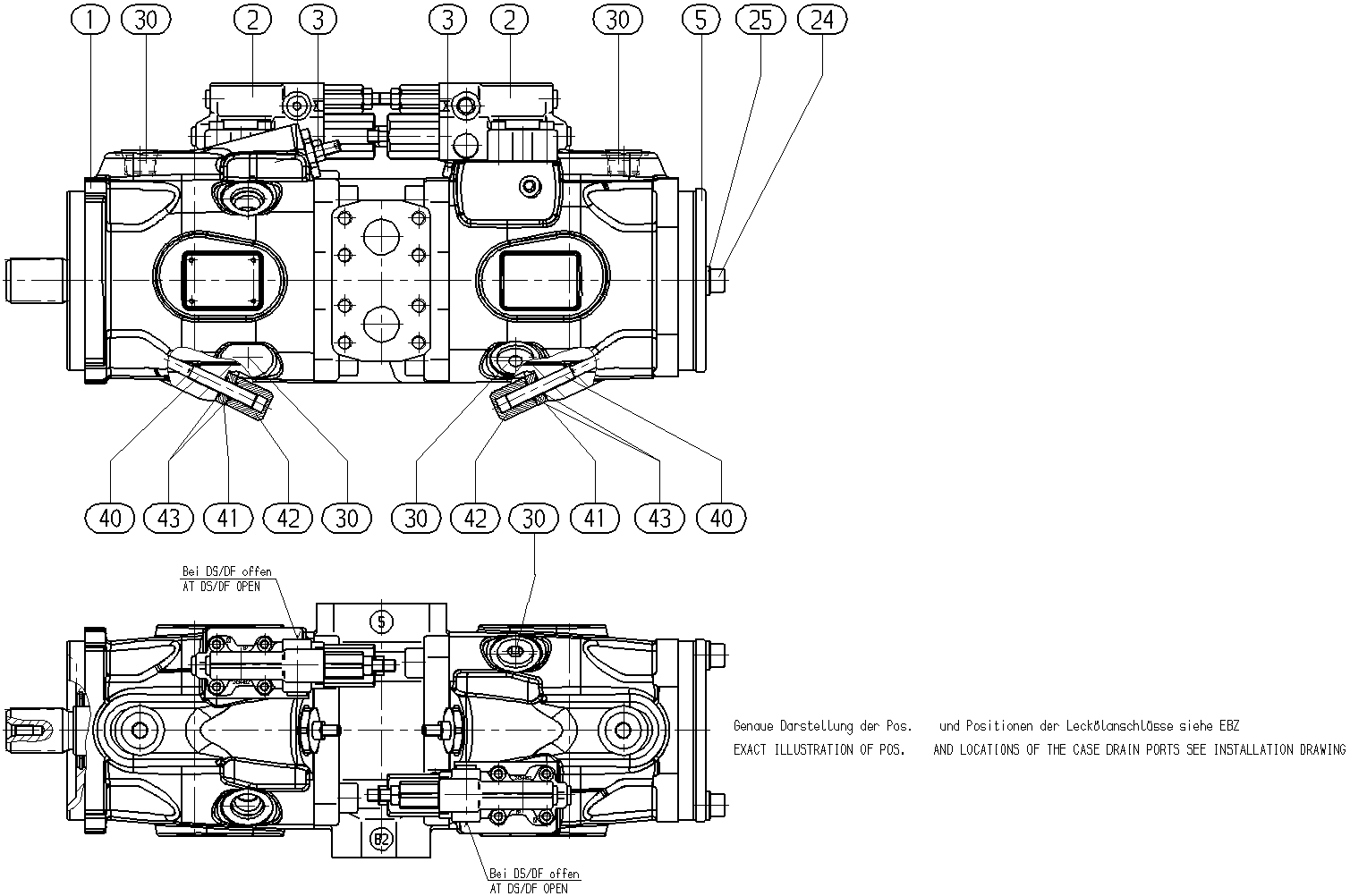

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902459728 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 2 | ||
| R902460346 | ADJUSTING PIECE Assembly parts list →L | 2 | ||
| R902418898 | SEALING COVER | 1 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 | ||
| R902650189 | WASHER | 2 | ||
| R910967343 | SCREW PLUG | 5 | ||
| R910947854 | STOP SCREW | 2 | ||
| R910998240 | NUT | 2 | ||
| R910961839 | CAP NUT | 2 | ||
| R910804886 | O-RING | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable (back to back version) | A20V |
| Operating mode | Double pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 4-hole | D |
| Working port | SAE flanges, two port B and one port S laterally opposite, metric fastening thread | 24 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
