Unit · AXIAL-PISTON PUMP

A A10V O 28 DRS /53R-VSC12K01 -S2366R902460156

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DRS/53R-VSC12K01-S2366, material number R902460156. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 2366.

Number: R902460156
Type code: A A10V O 28 DRS /53R-VSC12K01 -S2366
Group: A10VO 28
Edition: 06/2020

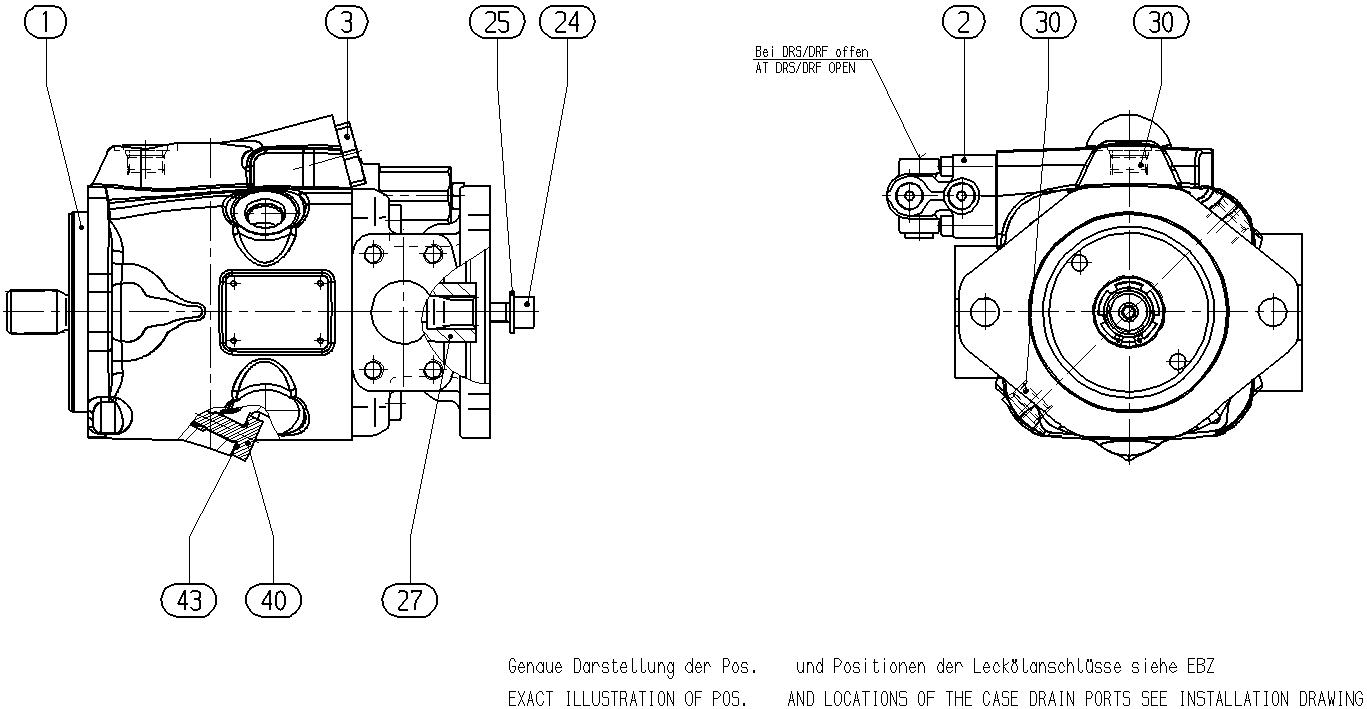

A A10V O 28 DRS /53R-VSC12K01 -S2366 — Drawing

Number	Name	Qty
R902459942	BASE UNIT Assembly parts list →L	1
R902451608	CONTROL VALVE Assembly parts list →L	1
R902460158	SERVO UNIT Assembly parts list →L	1
R910986299	SPLINED COUPLING	1
R910901969	SCREW PLUG	2
R902424207	STOP SCREW	1
R910804886	O-RING	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	28	28
Control device	with flow controller X-T plugged with flushing function	DRS
Series	Series 5, index 3	53
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite	12
Through drive	82-2 (A) 5/8 in 9T 16/32DP	K01

Parameters from the type code

Other versions 3
