Unit · AXIAL-PISTON PUMP
AH A4VSO 355 HD1B /30R-PPB13G40R902460371
Axial piston pump Bosch Rexroth series A4VSO, type code AHA4VSO355HD1B/30R-PPB13G40, material number R902460371. Nominal size: NG 355. Hydraulic fluid: high-speed version (H). Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P).
- Number
- R902460371
- Type code
- AH A4VSO 355 HD1B /30R-PPB13G40
- Group
- A4VSO 355
- Edition
- 05/2020

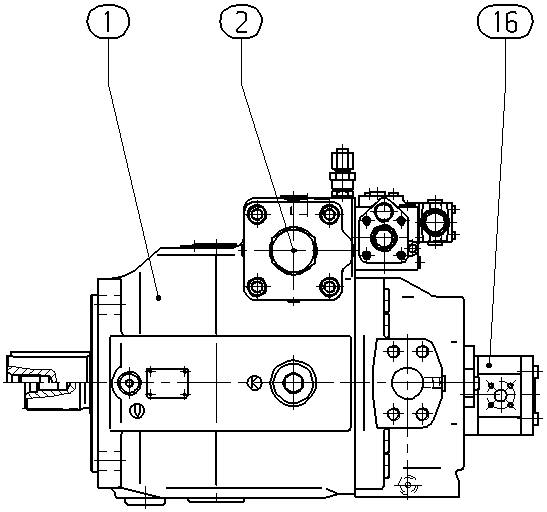

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902409395 | BASE UNIT Assembly parts list →L | 1 | ||
| R910994433 | CONTROL Assembly parts list →L | 1 | ||
| 0510525072 | HYDRAULIC GEAR PUMPL | 1 | ||
| 61 | R902805709 | SHIPPING PROTECTION | 1 | |
| 62 | R902602206 | SEAL SCREW | 1 | |
| 63 | R902564146 | SHIPPING PROTECTION | 1 | |
| 64 | R902448945 | FLANGE COVER | 1 | |
| 65 | R902448945 | FLANGE COVER | 1 | |
| 81 | R910795224 | PLUG | 1 | |
| 82 | R902602008 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Hydraulic fluid | High-speed version | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 355 | 355 |
| Series | Series 3, index 0 | 30 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Through-drive | 40 | 40 |
