Unit · AXIAL-PISTON PUMP

AHA10VO45ED74/52R-VUC12N00P-SO925R902460651

Axial piston pump Bosch Rexroth series A10VO, type code AHA10VO45ED74/52R-VUC12N00P-SO925, material number R902460651. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 925.

Number
R902460651
Type code
AHA10VO45ED74/52R-VUC12N00P-SO925
Group
A10VO 45
Edition
07/2020

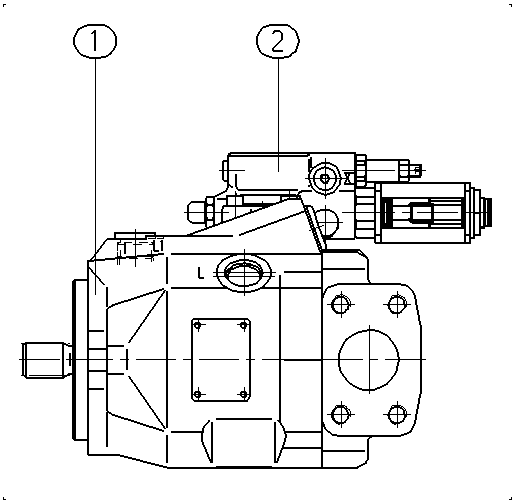

AHA10VO45ED74/52R-VUC12N00P-SO925 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902430202BASE UNIT Assembly parts list →L1
R902533315CONTROL VALVE Assembly parts list →L1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)4545
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftreduced diameter, limited suitability for through driveU
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Through driveWithout through driveN00
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P

Other versions 19
