Unit · POMPA OSIOWO-TŁOKOWA

AA10VSO71LA6D/32R-VPB32X60R902460898

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71LA6D/32R-VPB32X60, material number R902460898. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure cut-off control from 51 to 90 bar (LA6D). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885, limited suitability for through drive (P). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping (32).

Number
R902460898
Type code
AA10VSO71LA6D/32R-VPB32X60
Group
A10VSO 71
Edition
06/2020

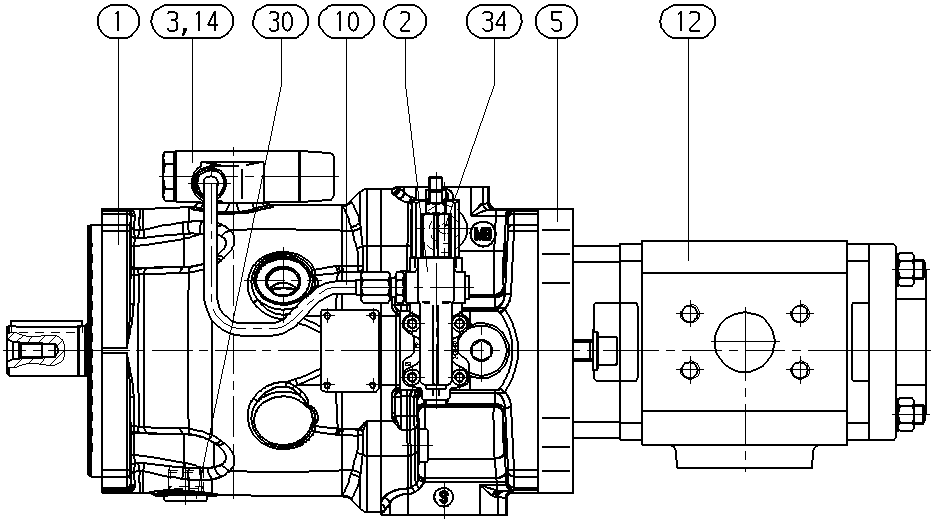

AA10VSO71LA6D/32R-VPB32X60 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902448568ZESPÓŁ PODSTAWY Assembly parts list →L1
R902451761ZAWÓR REGULACYJNY Assembly parts list →L1
R902533219ZAWÓR REGULACYJNY Assembly parts list →L1
R902447046ZESTAW PRZYŁĄCZENIOWY1
R902448747ORUROWANIE Assembly parts list →L1
R902650404POMPA ZĘBATA1
R910764647KOREK GWINTOWANY1
R909156654KOREK GWINTOWANY1
R913011609KOREK GWINTOWANY1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)7171
Control devicepressure cut-off control from 51 to 90 barLA6D
SeriesSeries 3, index 232
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftParallel keyed shaft DIN 6885, limited suitability for through driveP
Mounting flangeISO 3019-2; 4-holeB
PortSAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping32
