Unit · AXIAL-PISTON PUMP
AE A4VSO 125 EM1111/30R-VPB13N00R902461132
Axial piston pump Bosch Rexroth series A4VSO, type code AEA4VSO125EM1111/30R-VPB13N00, material number R902461132. Nominal size: NG 1111. Hydraulic fluid: HFA, HFB and HFC hydraulic fluids Only with sealing material NBR nitrile rubber and shaft seal PTFE. (E). Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric (A4VS). Directions of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) / HFD operation (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Through-drive: without through drive (N00).
- Number
- R902461132
- Type code
- AE A4VSO 125 EM1111/30R-VPB13N00
- Group
- A4VSO 125
- Edition
- 06/2020

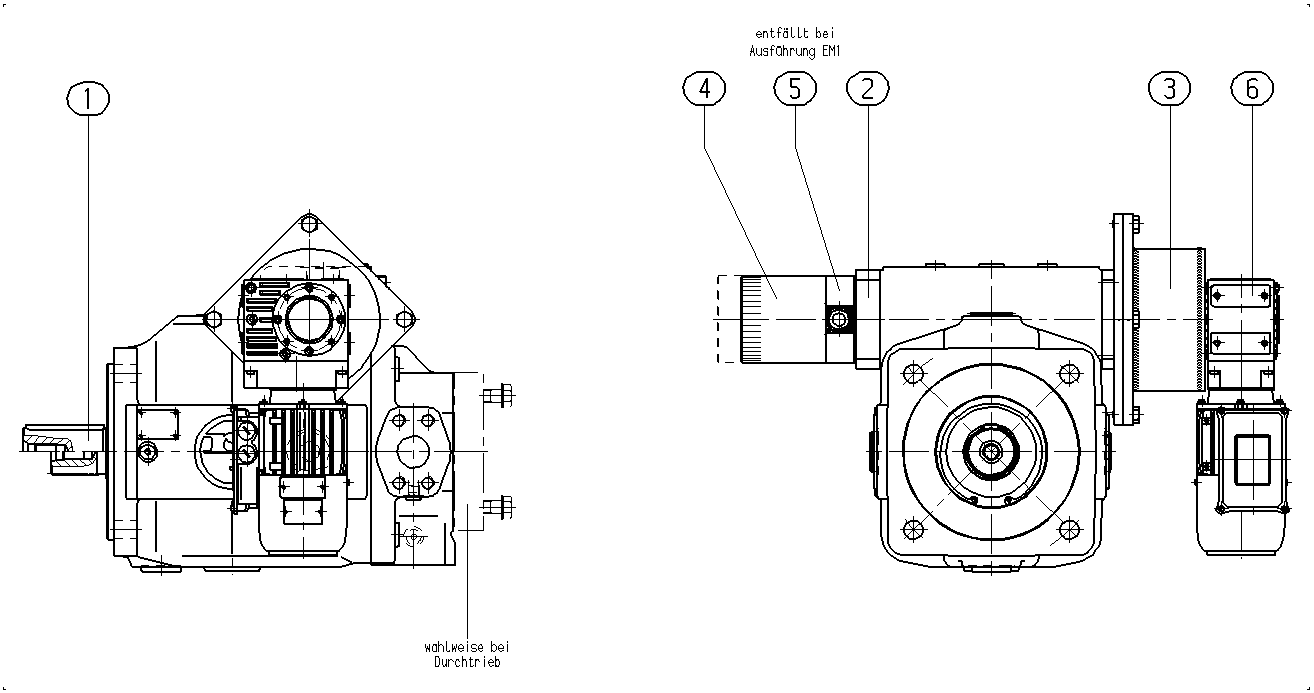

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902429286 | BASE UNIT Assembly parts list →L | 1 | ||
| R902429948 | CONTROL Assembly parts list →L | 1 | ||
| R910990039 | COUPLING | 1 | ||
| R910916485 | LIMIT SWITCH | 1 | ||
| R902404470 | GEAR MOTOR | 1 | ||
| 61 | R902421947 | SHIPPING PROTECTION | 1 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 63 | R902421950 | SHIPPING PROTECTION | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Hydraulic fluid | HFA, HFB and HFC hydraulic fluids Only with sealing material NBR nitrile rubber and shaft seal PTFE. | E |
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) Metric | A4VS |
| Size (NG) | 1111 | 1111 |
| Series | Series 3, index 0 | 30 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) / HFD operation | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Through-drive | Without through drive | N00 |
