Unit · AXIAL-PISTON MOTOR
AL A10V M 45 EZ7 /52W1-VWC16N000 -S2386R902461828
Axial piston motor Bosch Rexroth series A10VM, type code ALA10VM45EZ7/52W1-VWC16N000-S2386, material number R902461828. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M). Control devices: two-point control electric with switching solenoid U = 24 V orifice with (EZ7). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for reduced torque (W). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: threaded port according to A and B laterally, Threaded port, metric DIN 3852-1 same side (16N00). Valves: without valve (0). Special version no. 2386.
- Number
- R902461828
- Type code
- AL A10V M 45 EZ7 /52W1-VWC16N000 -S2386
- Group
- A10VM 45
- Edition
- 06/2020

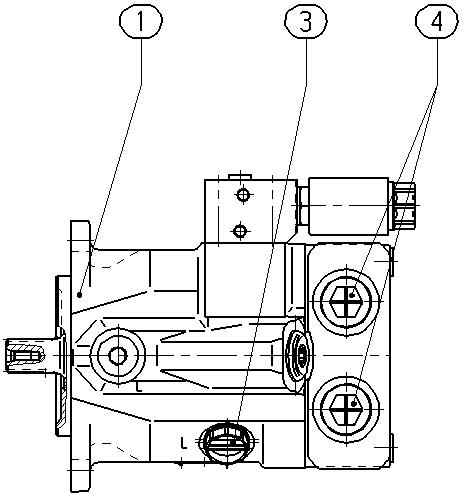

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902461829 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R902603190 | SEAL SCREW | 1 | ||
| R902602012 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 45 | 45 |
| Control devices | Two-point control electric with switching solenoid U = 24 V orifice with | EZ7 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for reduced torque | W |
| Mounting flange | Based on ISO 3019-1 (SAE); 2 hole | C |
| Working port | Threaded port according to A and B laterally, Threaded port, metric DIN 3852-1 same side | 16N00 |
| Valves | Without valve | 0 |
