Unit · AXIAL-PISTON PUMP

A A10V O 60 DFR1/52L-VSC12N00 -SO724R902462080

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DFR1/52L-VSC12N00-SO724, material number R902462080. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Special version no. 724.

Number: R902462080
Type code: A A10V O 60 DFR1/52L-VSC12N00 -SO724
Group: A10VO 60
Edition: 06/2020

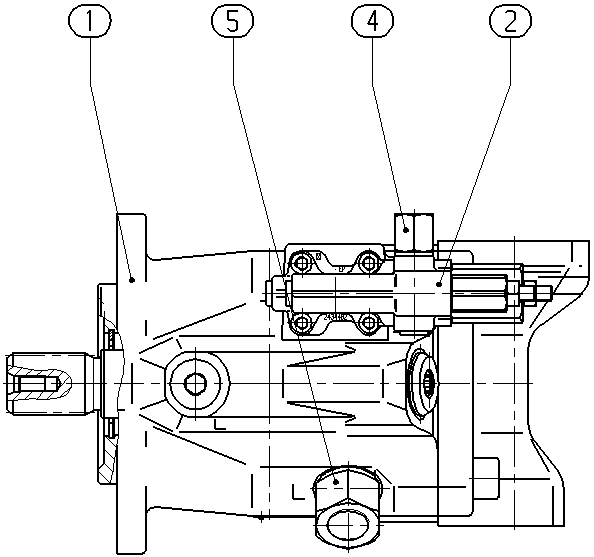

A A10V O 60 DFR1/52L-VSC12N00 -SO724 — Drawing

Pos.	Number	Name	Qty
	R902417174	BASE UNIT Assembly parts list →L	1
	R902450440	CONTROL VALVE Assembly parts list →L	1
	R902409426	ADAPTER Assembly parts list →L	1
	R910934572	ADAPTER Assembly parts list →L	1
70	R902421945	SHIPPING PROTECTION	1
71	R902421949	SHIPPING PROTECTION	1
72	R902602011	SEAL SCREW	1
73	R902602008	SEAL SCREW	1
75	R909830326	NAMEPLATE	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	60	60
Control device	with flow controller X-T plugged with flushing function	DFR1
Series	Series 5, index 2	52
Direction of rotation	Viewed on drive shaft counter-clockwise	L
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite	12
Through drive	Without through drive	N00

Parameters from the type code
