Unit · AXIAL-PISTON PUMP
A A10V O 71 DFSR/31R-VSC42L40 -S1766R902462087
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFSR/31R-VSC42L40-S1766, material number R902462087. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom (42). Special version no. 1766.
- Number
- R902462087
- Type code
- A A10V O 71 DFSR/31R-VSC42L40 -S1766
- Group
- A10VO 71
- Edition
- 06/2020

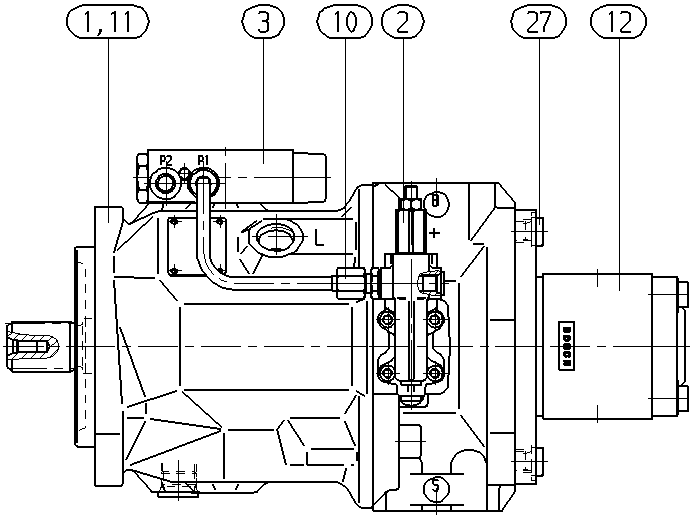

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902462085 | BASE UNIT Assembly parts list →L | 1 | ||
| R902535529 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533228 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910963807 | PIPING Assembly parts list →L | 1 | ||
| R902443058 | POWER DIAGRAM | 1 | ||
| 0510725105 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910714917 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom | 42 |
