Unit · AXIAL-PISTON PUMP
A10VO110ED72/31L+A10VO85ED72/52LR902462128
Axial piston pump Bosch Rexroth series A10VO, type code A10VO110ED72/31L+A10VO85ED72/52L, material number R902462128. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft Counter-clockwise (L).
- Number
- R902462128
- Type code
- A10VO110ED72/31L+A10VO85ED72/52L
- Group
- A10VO 110
- Edition
- 06/2020

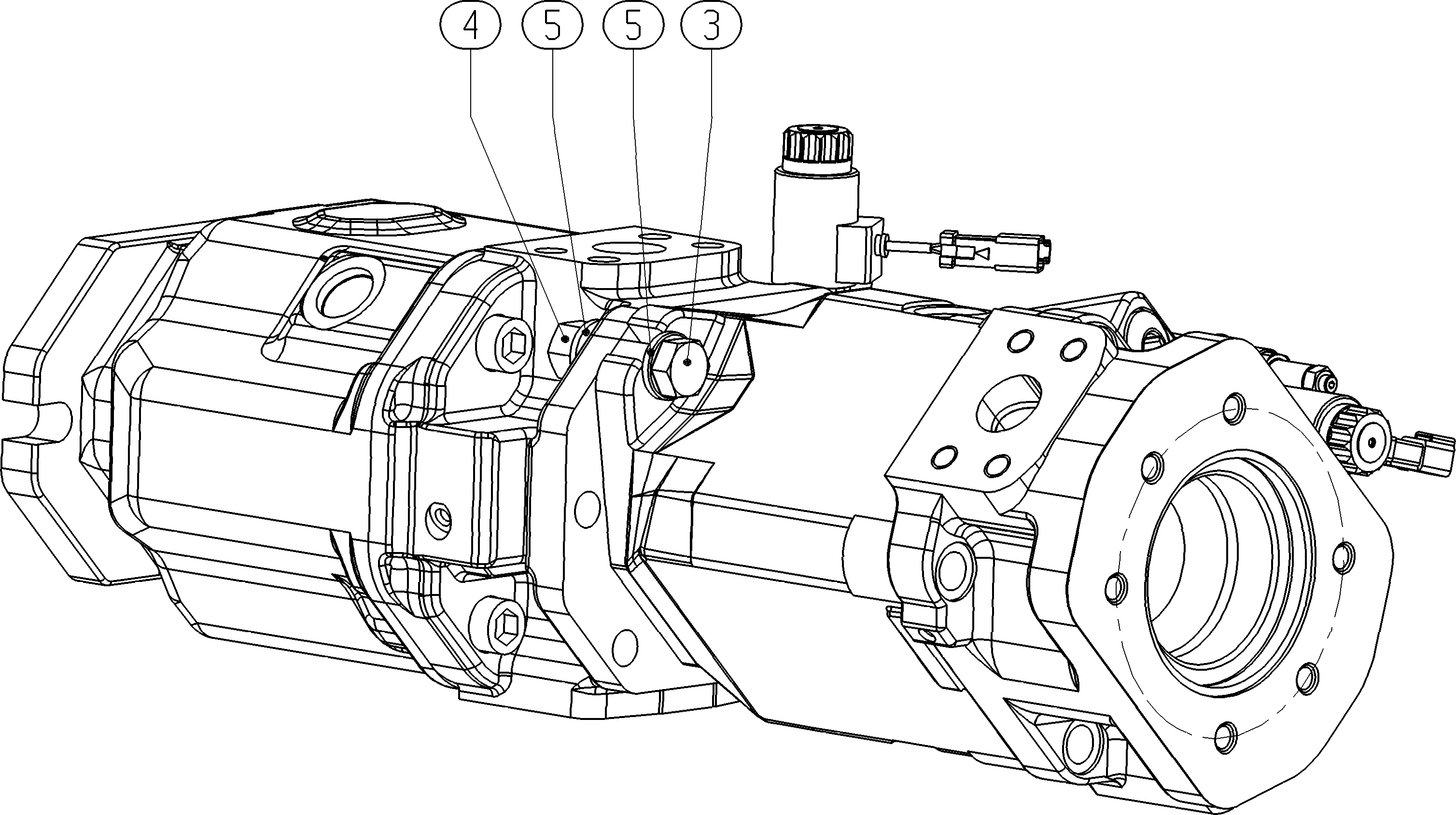

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902443167 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| 2 | R902443166 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R910124168 | HEXAGON SCREW | 2 | ||
| R910125849 | HEXAGON NUT | 2 | ||
| R902650192 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 110 | 110 |
| Control device | With pressure cut-off Electric U = 24 V | ED72 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
