Unit · AXIAL-PISTON PUMP

AL A10V O 60 DFR1/52L-VUC11N00 -S2395R902462148

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO60DFR1/52L-VUC11N00-S2395, material number R902462148. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00). Special version no. 2395.

Number
R902462148
Type code
AL A10V O 60 DFR1/52L-VUC11N00 -S2395
Group
A10VO 60
Edition
06/2020

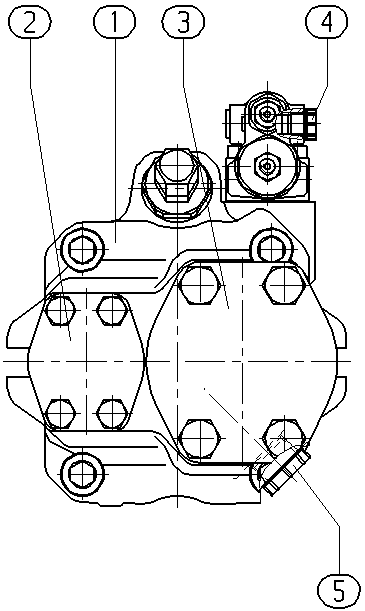

AL A10V O 60 DFR1/52L-VUC11N00 -S2395 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902462149AXIAL-PISTON PUMP Assembly parts list →L1
R902400578FLANGE COVER1
R902400590FLANGE COVER1
R902602014SEAL SCREW1
R902603190SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)6060
Control devicewith flow controller X-T plugged with flushing functionDFR1
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftreduced diameter, limited suitability for through driveU
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive11
Through driveWithout through driveN00
