Unit · AXIAL-PISTON PUMP

AA10VO140DFR1/31L-VSC62K24R902462293

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DFR1/31L-VSC62K24, material number R902462293. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 127-2 (C) 1 1/2 in 17T 12/24DP (K24).

Number
R902462293
Type code
AA10VO140DFR1/31L-VSC62K24
Group
A10VO 140
Edition
06/2020

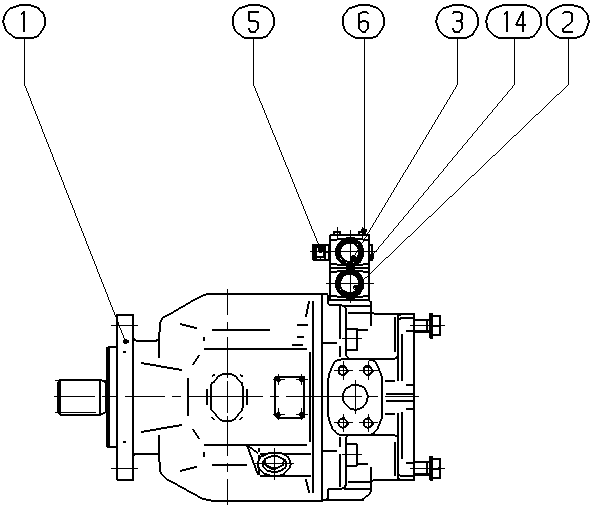

AA10VO140DFR1/31L-VSC62K24 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902462294BASE UNIT Assembly parts list →L1
R910924992CONTROL VALVE Assembly parts list →L1
R910924990CONTROL VALVE Assembly parts list →L1
R910984005ADAPTER Assembly parts list →L1
R910799998SOCKET HEAD CAP SCREW4
R909153930SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)140140
Control deviceWith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft Counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive62
Through drive127-2 (C) 1 1/2 in 17T 12/24DPK24
