Unit · BASE UNIT
G A10V O 28 DR /53L-VSC12N00 -S2404R902462393
Base unit Bosch Rexroth series A10VO, type code GA10VO28DR/53L-VSC12N00-S2404, material number R902462393. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Special version no. 2404.
- Number
- R902462393
- Type code
- G A10V O 28 DR /53L-VSC12N00 -S2404
- Group
- A10VO 28
- Edition
- 06/2020

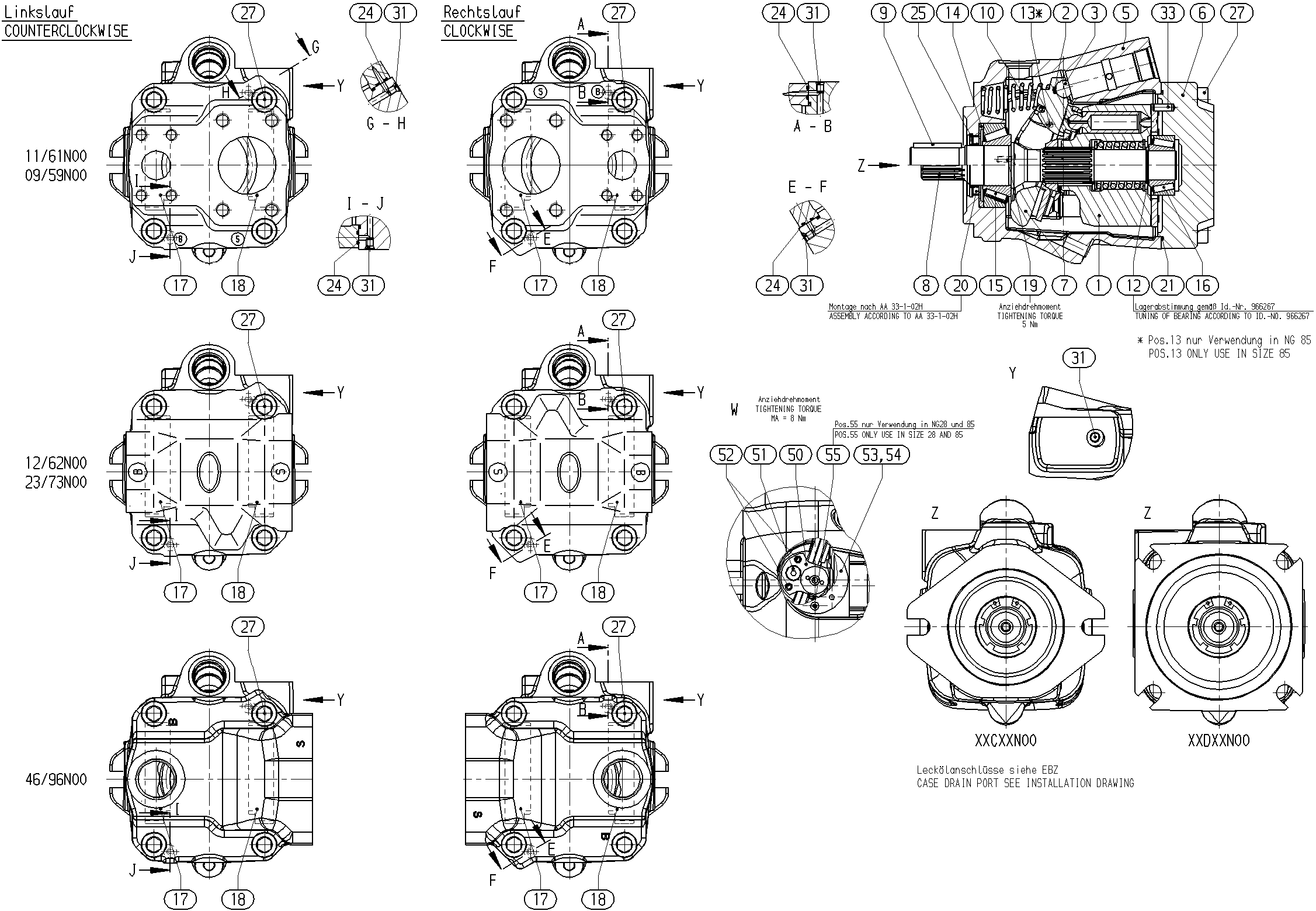

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439596 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902473753 | COMPRESSION SPRING | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902462356 | PUMP HOUSING | 1 | ||
| R902428587 | CONNECTION PLATE | 1 | ||
| R902462685 | SWASH PLATE | 1 | ||
| R902417366 | DRIVE SHAFT | 1 | ||
| R902418549 | COMPRESSION SPRING | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910987890 | STOP RING | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902416852 | BEARING SHELL | 2 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R910988019 | SHAFT SEALING RING | 1 | ||
| R902650851 | O-RING | 1 | ||
| R910942133 | R-RING | 2 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902418546 | WASHER | 1 | ||
| 2910130191 | SOCKET HEAD CAP SCREW | 1 | ||
| R910585351 | STRAIGHT PIN | 2 | ||
| R902418548 | SPACER RING | 1 | ||
| R910756598 | O-RING | 1 | ||
| R910109177 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | Without through drive | N00 |
