Unit · AXIAL-PISTON PUMP
AL A10VNO 45 DFR1/52L-VCC07K01 -S2058R902462701
Axial piston pump Bosch Rexroth series A10VNO, type code ALA10VNO45DFR1/52L-VCC07K01-S2058, material number R902462701. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 2058.
- Number
- R902462701
- Type code
- AL A10VNO 45 DFR1/52L-VCC07K01 -S2058
- Group
- A10VNO 45
- Edition
- 06/2020

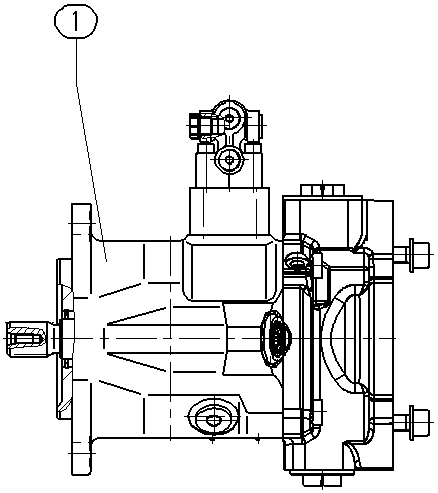

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902444590 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | 7 | 07 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
