Unit · AXIAL-PISTON PUMP

AA10VSO71DFEH/32R-VPB32UB3R902462822

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71DFEH/32R-VPB32UB3, material number R902462822. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885, limited suitability for through drive (P). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping (32). Through drive: only for port plate 22 and 32, ISO 100, 2-hole 7/8 in 13T 16/32DP (UB3).

Number
R902462822
Type code
AA10VSO71DFEH/32R-VPB32UB3
Group
A10VSO 71
Edition
06/2020

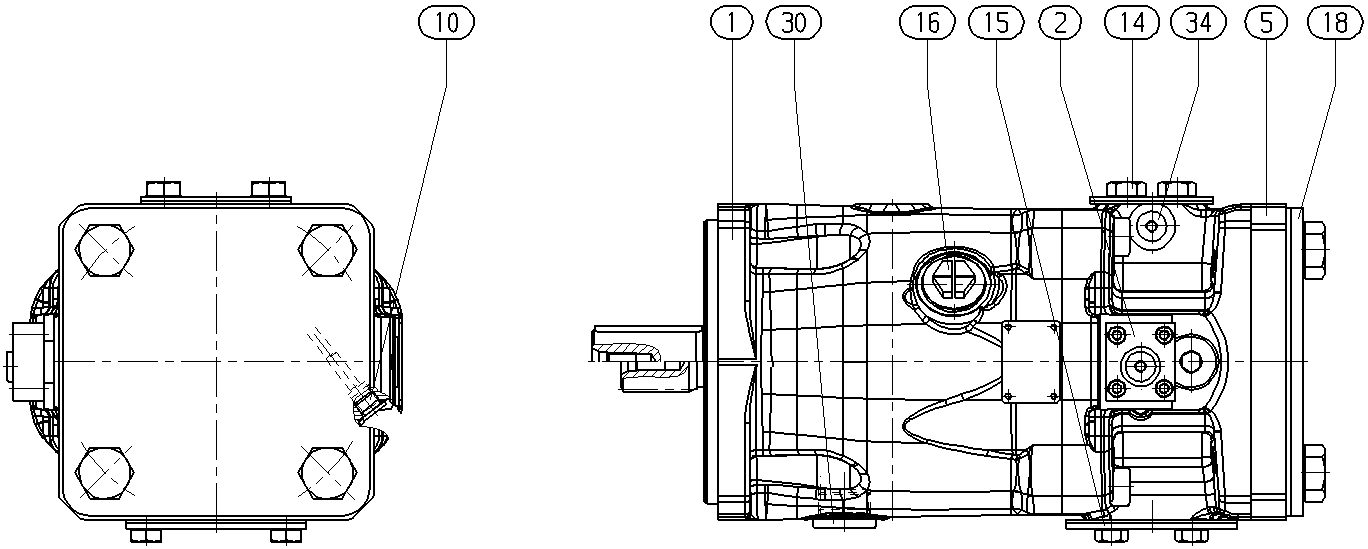

AA10VSO71DFEH/32R-VPB32UB3 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902462253BASE UNIT Assembly parts list →L1
R902449557FLANGE COVER2
R902446997ATTACHMENT KIT1
R909157039SCREW PLUG1
R902400578FLANGE COVER1
R902400590FLANGE COVER1
R902602011SEAL SCREW1
R902601166FLANGE COVER1
R909156654SCREW PLUG1
R913011609SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)7171
SeriesSeries 3, index 232
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftParallel keyed shaft DIN 6885, limited suitability for through driveP
Mounting flangeISO 3019-2; 4-holeB
PortSAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping32
Through driveOnly for port plate 22 and 32, ISO 100, 2-hole 7/8 in 13T 16/32DPUB3
