Unit · AXIAL-PISTON PUMP
AA10VSO71DFEO/32R-VPB32U99R902462829
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71DFEO/32R-VPB32U99, material number R902462829. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885, limited suitability for through drive (P). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping (32).
- Number
- R902462829
- Type code
- AA10VSO71DFEO/32R-VPB32U99
- Group
- A10VSO 71
- Edition
- 06/2020

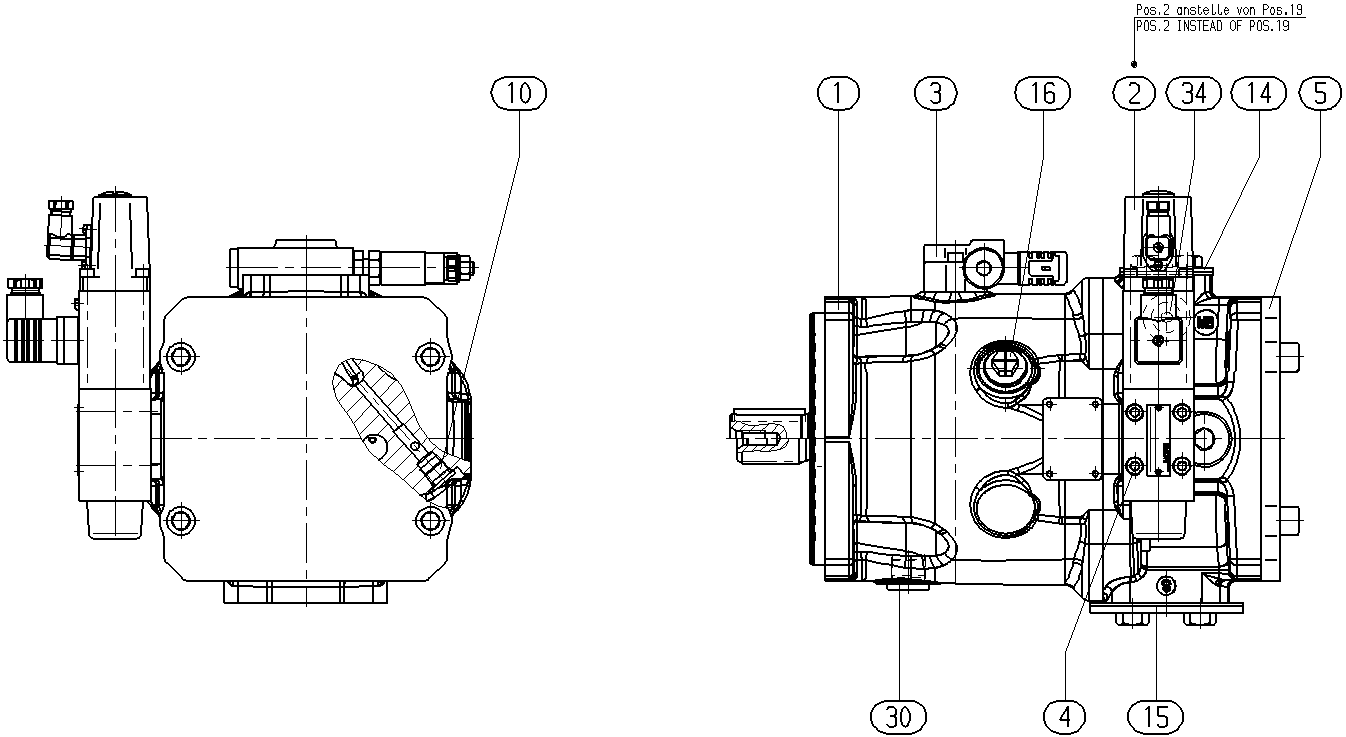

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902462253 | BASE UNIT Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902438778 | COVER Assembly parts list →L | 1 | ||
| R909157039 | SCREW PLUG | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902400590 | FLANGE COVER | 1 | ||
| R902602011 | SEAL SCREW | 1 | ||
| 19 | R902449557 | FLANGE COVER | 1 | |
| R909156654 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885, limited suitability for through drive | P |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Port | SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive with pulse damping | 32 |
