Unit · AXIAL-PISTON PUMP
AL A10VWO 28 DFR1/52W-VSC70N00R902462863
Axial piston pump Bosch Rexroth series A10VWO, type code ALA10VWO28DFR1/52W-VSC70N00, material number R902462863. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar (A10VW). Operating mode: pump, open circuit (O). Control device: constant volume controller hydraulic X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft according to ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C). Working port: threaded ports rear pipe thread (DIN ISO 228) (70).
- Number
- R902462863
- Type code
- AL A10VWO 28 DFR1/52W-VSC70N00
- Group
- A10VWO 28
- Edition
- 06/2020

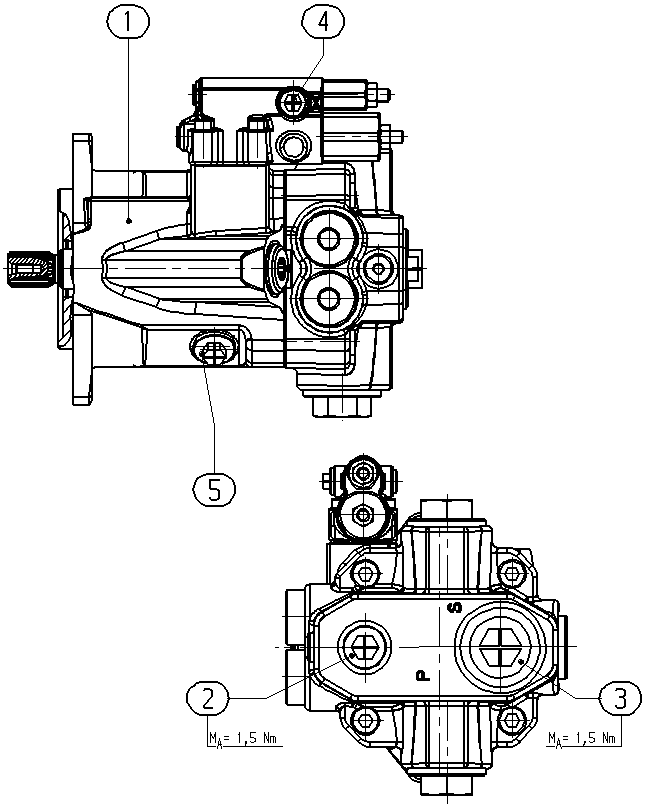

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902463912 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar | A10VW |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | Constant volume controller hydraulic X-T plugged, with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft according to ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | Threaded ports rear pipe thread (DIN ISO 228) | 70 |
