Unit · AXIAL-PISTON PUMP
A A10V O 63LA8DS/53R-VSC62H00 -SO928R902463173
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO63LA8DS/53R-VSC62H00-SO928, material number R902463173. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off from 161 to 240 bar, separate flow control hydraulic beginning of control.D (LA8DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on SAE B; 2-hole ISO 3019-1 (SAE) (C). Working port: top, bottom, opposite, fastening thread UNC (62). Special version no. 928.
- Number
- R902463173
- Type code
- A A10V O 63LA8DS/53R-VSC62H00 -SO928
- Group
- A10VO 63
- Edition
- 06/2020

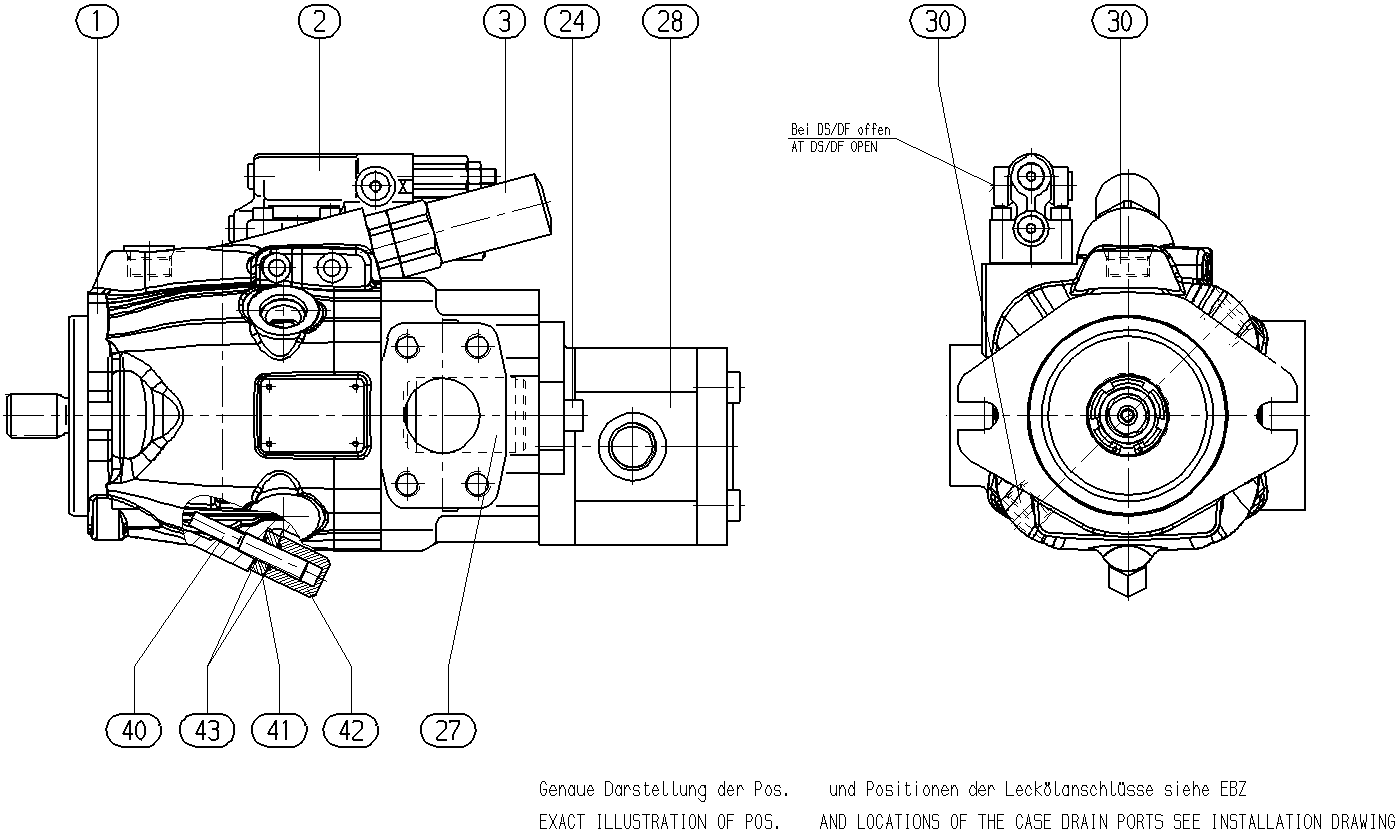

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902501361 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902469597 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 | ||
| 25 | R902650189 | WASHER | 2 | |
| R910943545 | SPLINED COUPLING | 1 | ||
| 0510525041 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910967343 | SCREW PLUG | 2 | ||
| R910947854 | STOP SCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910804886 | O-RING | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 63 | 63 |
| Control devices | pressure cut-off from 161 to 240 bar, separate flow control hydraulic beginning of control.D | LA8DS |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on SAE B; 2-hole ISO 3019-1 (SAE) | C |
| Working port | top, bottom, opposite, fastening thread UNC | 62 |
