Unit · AXIAL-PISTON PUMP
A A10V O 45 DFR /52L-VSC12K52 -S2436R902463311
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFR/52L-VSC12K52-S2436, material number R902463311. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52). Special version no. 2436.
- Number
- R902463311
- Type code
- A A10V O 45 DFR /52L-VSC12K52 -S2436
- Group
- A10VO 45
- Edition
- 06/2020

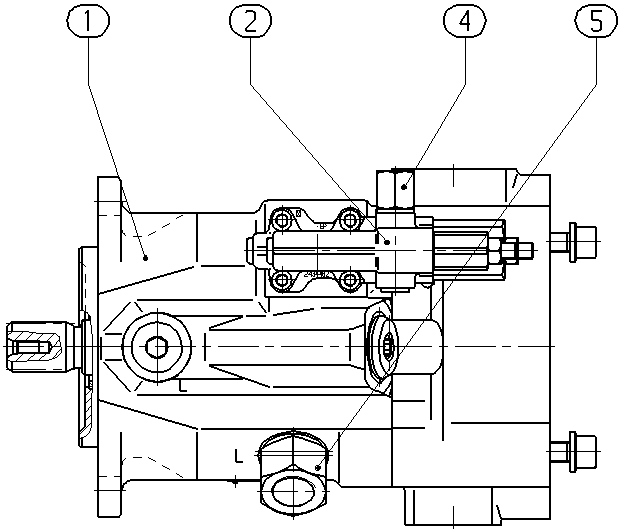

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902408520 | BASE UNIT Assembly parts list →L | 1 | ||
| R902463157 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902409426 | ADAPTER Assembly parts list →L | 1 | ||
| R910934572 | ADAPTER Assembly parts list →L | 1 | ||
| 70 | R902421945 | SHIPPING PROTECTION | 1 | |
| 71 | R902421948 | SHIPPING PROTECTION | 1 | |
| 72 | R902602011 | SEAL SCREW | 1 | |
| 73 | R902602008 | SEAL SCREW | 1 | |
| 74 | R902602975 | FLANGE COVER | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T open hydraulic | DFR |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | 82-2 (A) 3/4 in 11T 16/32DP | K52 |
