Unit · AXIAL-PISTON PUMP
A A10V O 60 DRG /52R-VKD12N00R902463367
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DRG/52R-VKD12N00, material number R902463367. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off hydraulic remote controlled (DRG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft ISO 3019-1 not for through drive (K). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00).
- Number
- R902463367
- Type code
- A A10V O 60 DRG /52R-VKD12N00
- Group
- A10VO 60
- Edition
- 06/2020

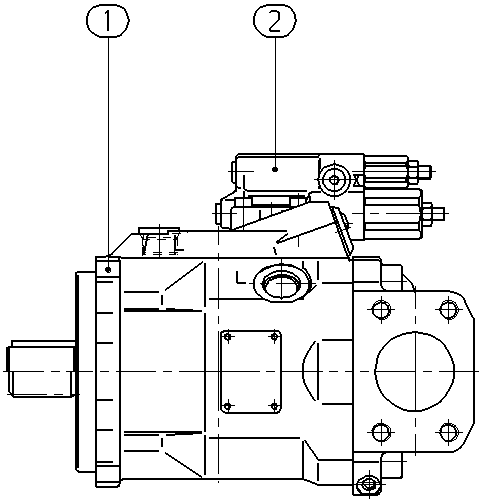

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902410785 | BASE UNIT Assembly parts list →L | 1 | ||
| R902455384 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Control device | with pressure cut-off hydraulic remote controlled | DRG |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft ISO 3019-1 not for through drive | K |
| Mounting flange | Based on ISO 3019-1 (SAE) 4-hole | D |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | Without through drive | N00 |
