Unit · AXIAL-PISTON PUMP
A A10V O 71 ED 72/32L-VSD12N00PR902463371
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71ED72/32L-VSD12N00P, material number R902463371. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: electric U = 24 V (ED72). Directions of rotation: viewed on drive shaft counter-clockwise (L). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: at bottom, on opposite side, metric fastening thread (12). Through drive: without through drive (N00). Swivel angle sensor: with electric swivel angle sensor PAL SENT/SENT U = 5V DC (P).
- Number
- R902463371
- Type code
- A A10V O 71 ED 72/32L-VSD12N00P
- Group
- A10VO 71
- Edition
- 06/2020

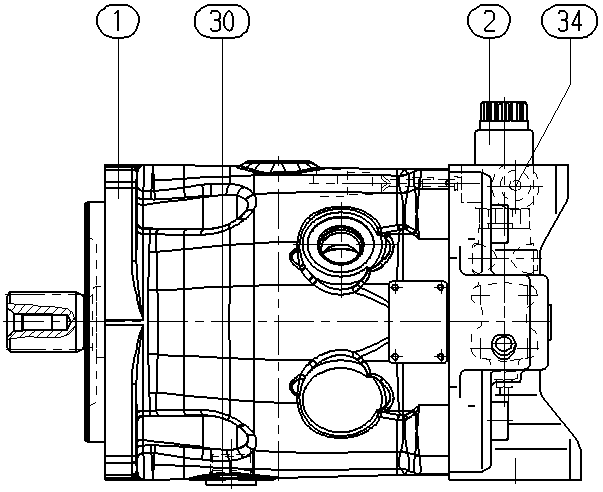

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902453974 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533408 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 71 | 71 |
| Control devices | electric U = 24 V | ED72 |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft counter-clockwise | L |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | at bottom, on opposite side, metric fastening thread | 12 |
| Through drive | Without through drive | N00 |
| Swivel angle sensor | With electric swivel angle sensor PAL SENT/SENT U = 5V DC | P |
