Unit · AXIAL-PISTON PUMP
AA10VO28ED72/31R-VSC11N00H-S2302R902463652
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28ED72/31R-VSC11N00H-S2302, material number R902463652. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Connector for solenoids: 14 With electric swivel angle sensor PAL Ratiometric Power supply U = 5V DC (H). Special version no. 2302.
- Number
- R902463652
- Type code
- AA10VO28ED72/31R-VSC11N00H-S2302
- Group
- A10VO 28
- Edition
- 06/2020

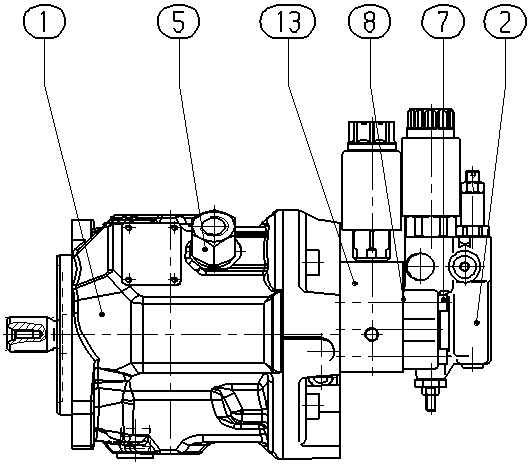

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910993835 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533403 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910929857 | ADAPTER Assembly parts list →L | 1 | ||
| R902650500 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 1 | ||
| R902463649 | INTERMEDIATE PLATE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | With pressure cut-off Electric U = 24 V | ED72 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
| Connector for solenoids | 14 With electric swivel angle sensor PAL Ratiometric Power supply U = 5V DC | H |
