Unit · AXIAL-PISTON PUMP

AA10VO85DRF/53L-VSD12H00R902463975

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO85DRF/53L-VSD12H00, material number R902463975. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DRF). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Connector for solenoids: 13 With electric swivel angle sensor PAL ratiometric Power supply U = 5V DC (H).

Number
R902463975
Type code
AA10VO85DRF/53L-VSD12H00
Group
A10VO 85
Edition
06/2020

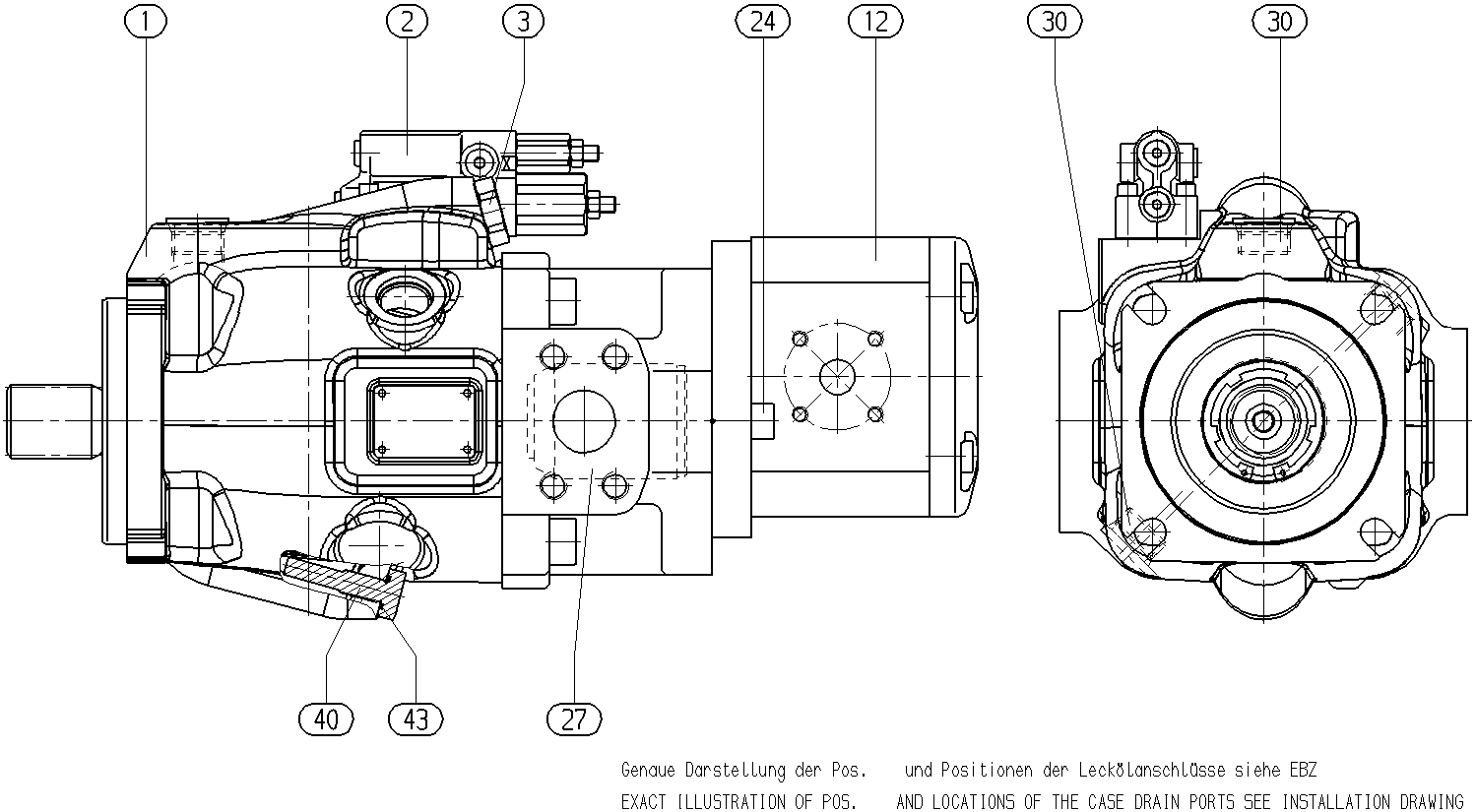

AA10VO85DRF/53L-VSD12H00 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902463908BASE UNIT Assembly parts list →L1
R902453430CONTROL VALVE Assembly parts list →L1
R902452824ADJUSTING PIECE Assembly parts list →L1
R918C02354HYDRAULIC GEAR PUMP1
R910121142SOCKET HEAD CAP SCREW2
R902436101SPLINED COUPLING1
R910967351SCREW PLUG2
R902429967STOP SCREW1
R910919314O-RING1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)8585
Control devicewith flow controller X-T open hydraulicDRF
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 4-holeD
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Connector for solenoids13 With electric swivel angle sensor PAL ratiometric Power supply U = 5V DCH
