Unit · AXIAL-PISTON PUMP
AAA10VSO45DFLR/31R-VSC62N00ESO793R902463999
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO45DFLR/31R-VSC62N00ESO793, material number R902463999. Nominal size: NG 45. Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00). Special version no. 793.
- Number
- R902463999
- Type code
- AAA10VSO45DFLR/31R-VSC62N00ESO793
- Group
- A10VSO 45
- Edition
- 06/2020

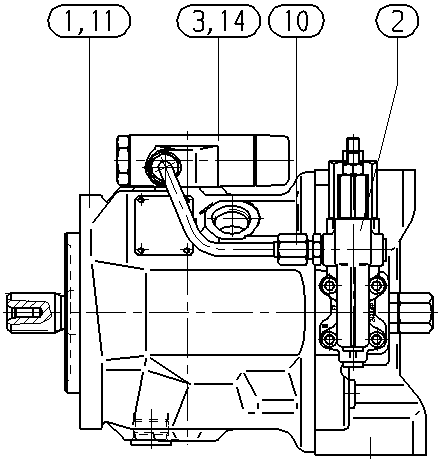

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902463979 | BASE UNIT Assembly parts list →L | 1 | ||
| R902456590 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910963862 | PIPING Assembly parts list →L | 1 | ||
| R910764647 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
