Unit · AXIAL-PISTON PUMP
AL A10V O 45LA8DS/53R-VSC62K01 -S2556R902464725
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO45LA8DS/53R-VSC62K01-S2556, material number R902464725. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off from 161 to 240 bar, separate flow control hydraulic beginning of control.D (LA8DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on SAE B; 2-hole ISO 3019-1 (SAE) (C). Working port: top, bottom, opposite, fastening thread UNC (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 2556.
- Number
- R902464725
- Type code
- AL A10V O 45LA8DS/53R-VSC62K01 -S2556
- Group
- A10VO 45
- Edition
- 06/2020

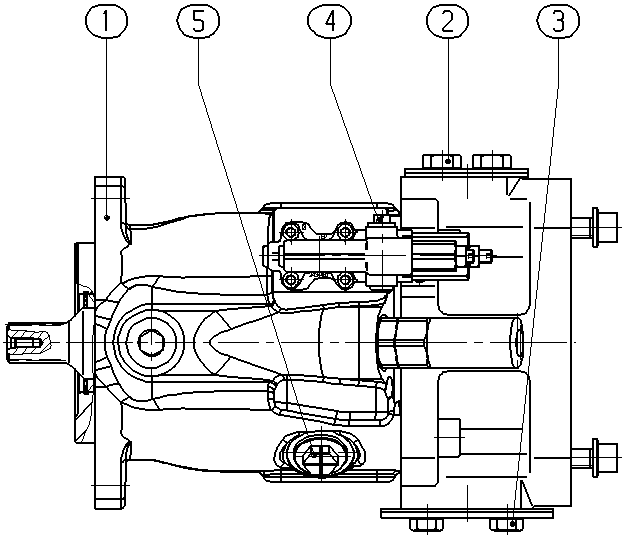

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902464726 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400579 | FLANGE COVER | 1 | ||
| R902400587 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 45 | 45 |
| Control devices | pressure cut-off from 161 to 240 bar, separate flow control hydraulic beginning of control.D | LA8DS |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on SAE B; 2-hole ISO 3019-1 (SAE) | C |
| Working port | top, bottom, opposite, fastening thread UNC | 62 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
