Unit · POMPA OSIOWO-TŁOKOWA
A A10VSO100 LA6D/32R-VKD72U99R902464807
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100LA6D/32R-VKD72U99, material number R902464807. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure cut-off control from 51 to 90 bar (LA6D). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V).
- Number
- R902464807
- Type code
- A A10VSO100 LA6D/32R-VKD72U99
- Group
- A10VSO 100
- Edition
- 06/2020

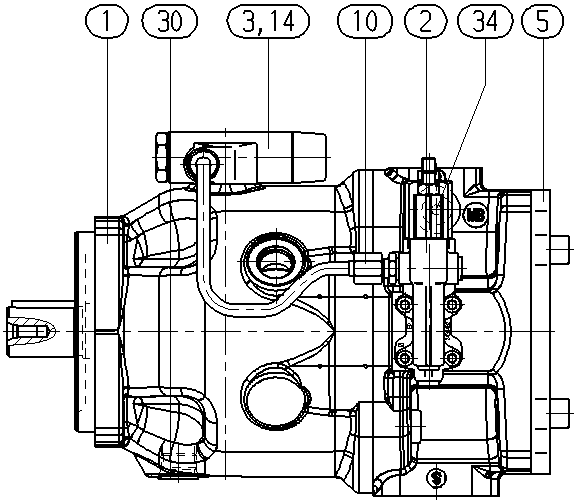

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902464779 | ZESPÓŁ PODSTAWY Assembly parts list →L | 1 | ||
| R902451761 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R902533219 | ZAWÓR REGULACYJNY Assembly parts list →L | 1 | ||
| R902444736 | POKRYWA Assembly parts list →L | 1 | ||
| R902436341 | ORUROWANIE Assembly parts list →L | 1 | ||
| R910764647 | KOREK GWINTOWANY | 1 | ||
| R910967351 | KOREK GWINTOWANY | 1 | ||
| R913011609 | KOREK GWINTOWANY | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | pressure cut-off control from 51 to 90 bar | LA6D |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
