Unit · AXIAL-PISTON PUMP
HA10VO110DFR1/31R+A10VO85DFR1/52RR902464859
Axial piston pump Bosch Rexroth series A10VO, type code HA10VO110DFR1/31R+A10VO85DFR1/52R, material number R902464859. Nominal size: NG 110. Version: high-speed version (external dimensions are the same as the standard version) (H). Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R).
- Number
- R902464859
- Type code
- HA10VO110DFR1/31R+A10VO85DFR1/52R
- Group
- A10VO 110
- Edition
- 06/2020

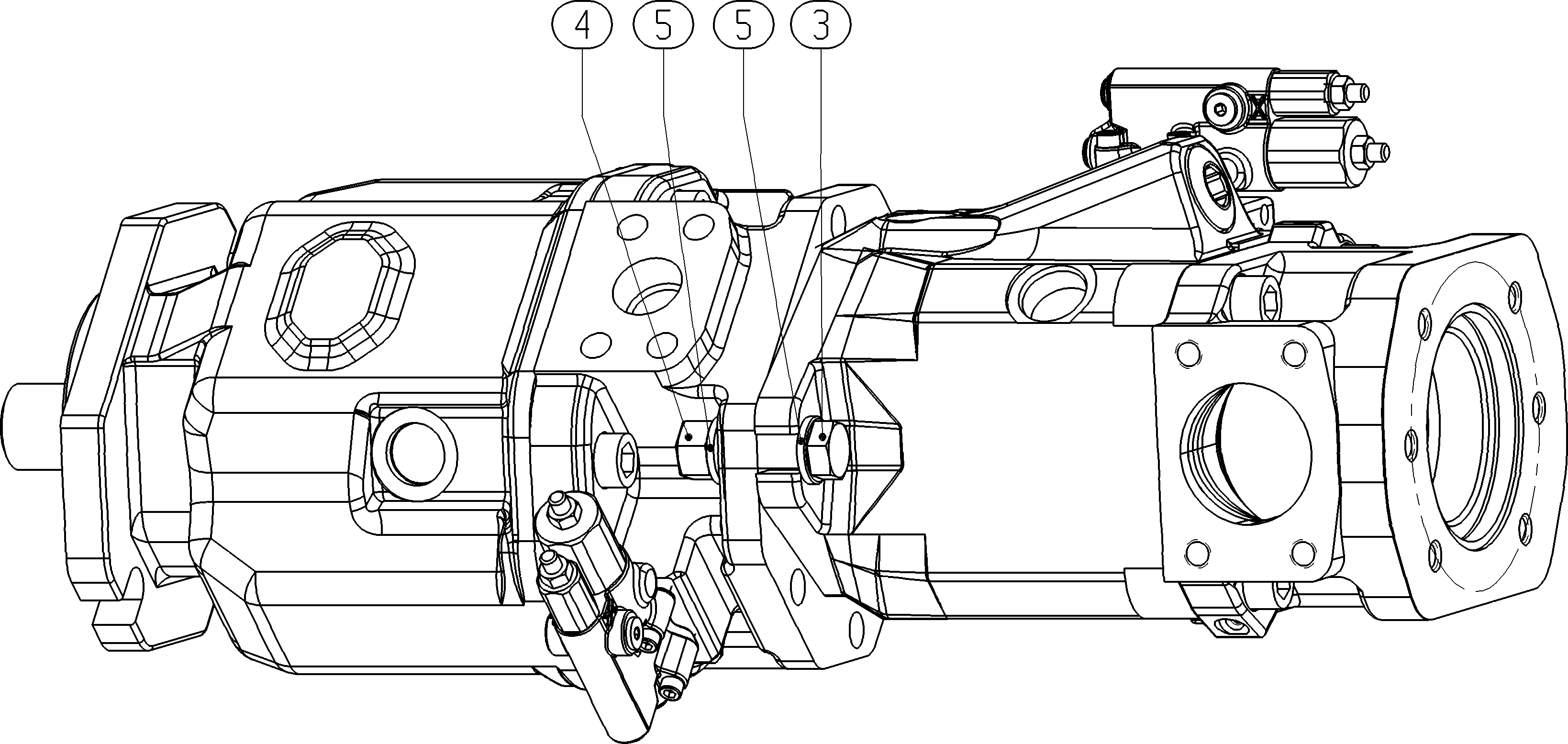

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902464860 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R902464861 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R910124168 | HEXAGON SCREW | 2 | ||
| R910125849 | HEXAGON NUT | 2 | ||
| R902650192 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are the same as the standard version) | H |
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 110 | 110 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
