Unit · AXIAL-PISTON PUMP
A A10VWO 28 DFR1/52W-VSC64N00 -S1213R902465504
Axial piston pump Bosch Rexroth series A10VWO, type code AA10VWO28DFR1/52W-VSC64N00-S1213, material number R902465504. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar (A10VW). Operating mode: pump, open circuit (O). Control device: constant volume controller hydraulic X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft according to ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C). Working port: threaded ports UN thread (ISO 11926) rear (64).
- Number
- R902465504
- Type code
- A A10VWO 28 DFR1/52W-VSC64N00 -S1213
- Group
- A10VWO 28
- Edition
- 06/2020

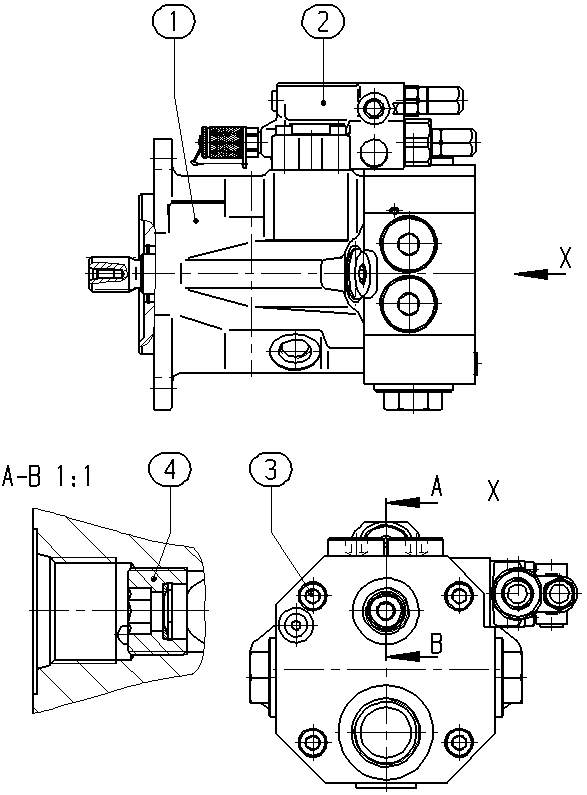

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 0 | R910982762 | DOCUMENT STRUCTURE | 1 | |
| R902434592 | BASE UNIT Assembly parts list →L | 1 | ||
| R902532399 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R902434987 | ORIFICE SCREW | 1 | ||
| 70 | R902603191 | SEAL SCREW | 1 | |
| 71 | R902603193 | SEAL SCREW | 1 | |
| 72 | R902602016 | SEAL SCREW | 1 | |
| 73 | R902602014 | SEAL SCREW | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar | A10VW |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | Constant volume controller hydraulic X-T plugged, with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft according to ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | Threaded ports UN thread (ISO 11926) rear | 64 |
